Snap-on Tools EEDM504F Basic TRMS Digital Multimeter


Available at: WEST ALLIS

7530 West Lincoln Avenue, 53219, Wisconsin West Allis

Email Us for Additional Information

Tap to Call

Something to Trade?

Model: EEDM504F

Item Id: 25521046640


Satisfaction Guaranteed



  • Brand: Snap-on
  • MPN: EEDM504F
  • Display: Digital
  • Form Factor: Handheld
  • Measurement Category: CAT III
  • AC Voltage Range: 750
  • DC Voltage Range: 1000
  • Resistance Range: 0 - 40.00 Meg Ohms


Measures ohms, AC/DC volts, true-RMS AC, AC/DC amps, Hz frequency and more to cover many automotive electrical needs
Large, white backlit display for easy reading, plus quick identification of symbols in low light conditions and with the backlight off—the best Snap-on® meter in bright daylight

• Convenient test lead storage wrap with retention strap

• Built-in tilt stand and optional strap hanger (EEDMMAGSTRAP) for easy viewing

• Hz/Duty (Duty Cycle)—measure in percent the ON time of sensors or other devices

• REC (record mode)—store minimum and maximum readings over a measurement period

• LCD display—4,000 count with 41-segment bar graph

• Seven-year limited warranty

• TRUE-RMS—True-RMS measurement on ACV and ACA for accurate readings on all types of of AC waveforms

• High-resolution DC mV range-additional 40 mV range with 0.01 mV resolution for improved accuracy when performing low-voltage measurements

• ACV (AC Volts)—measure the voltage of ABS wheel sensors

• DCV (DC Volts)—measure the voltage of circuits and sensors

• Separate fuse/battery compartment—easily removed for battery/fuse replacement

• REL (Relative Mode)—factor out lead resistance for improved low ohm measurements or compare readings to a known standard; can also be used for differential measurements

• Hold—lock the reading on the display for hard to read locations for future reference

• Ohms/Resistance—measure the resistance of spark plug wires, coils, sensors, and continuity of wiring

• AC/DC Current Functions (Amps)—measure the parasitic draw from the battery with ignition off

• Hz (Frequency)—measure the frequency of sensors and signals

• Separate Fuse/Battery Compartment—easily removed for battery/fuse replacement

Whats Included

Snap-on Tools EEDM504F TRMS-Daylight Basic Multimeter
+/- Probes

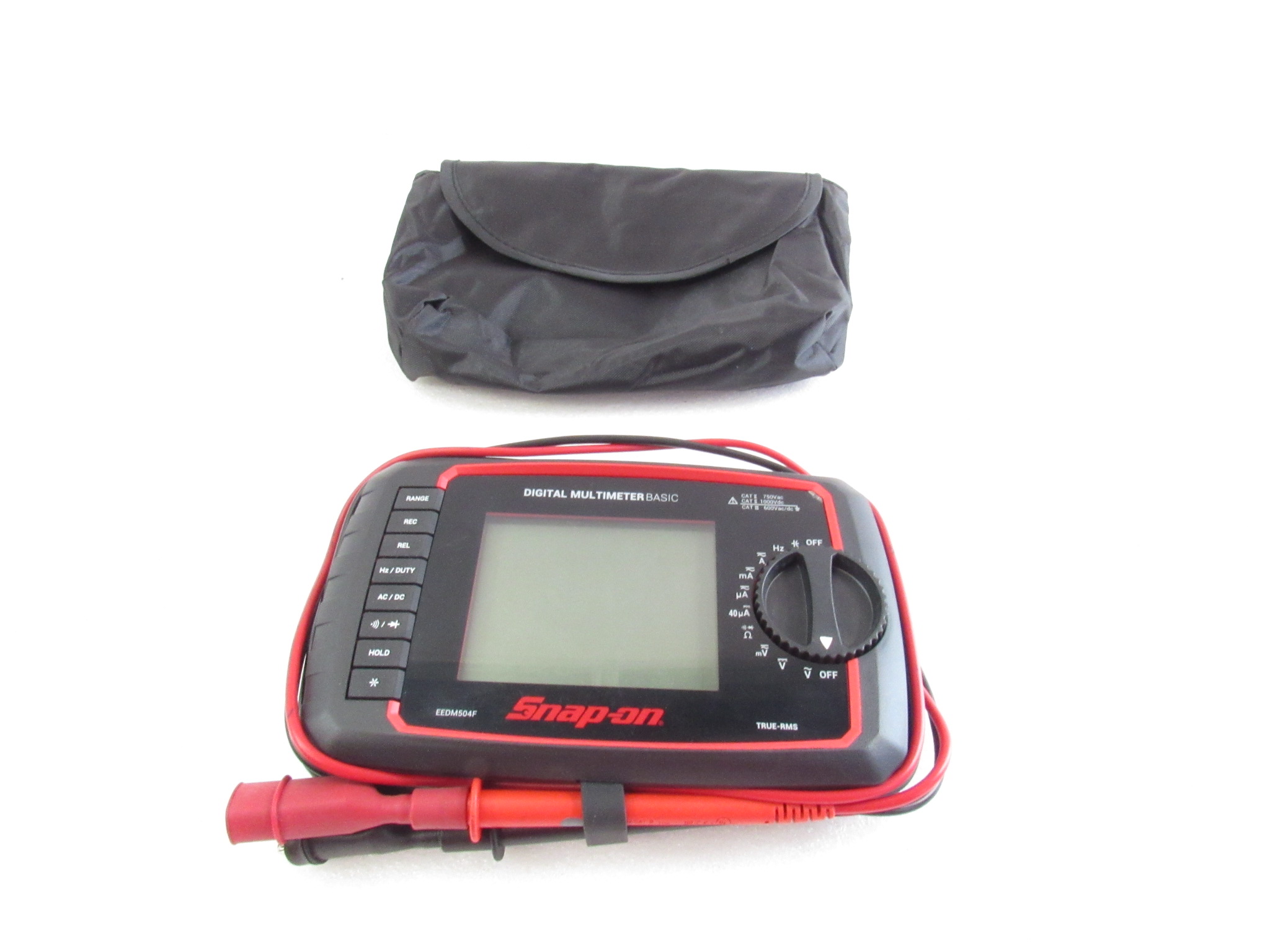

Multimeter is pre-owned and in good working condition with wear on the screen of the multimeter from previous use. See images for details
