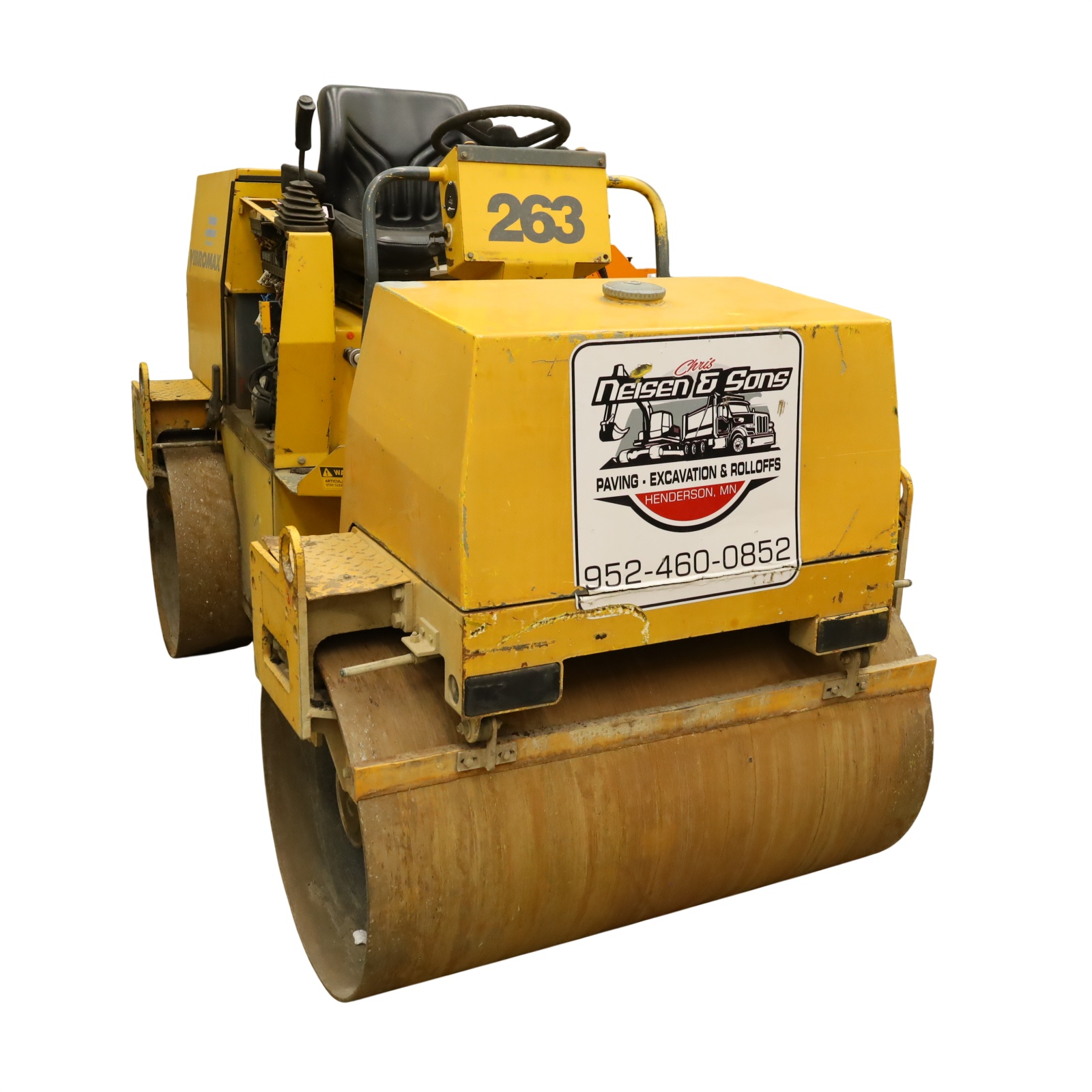

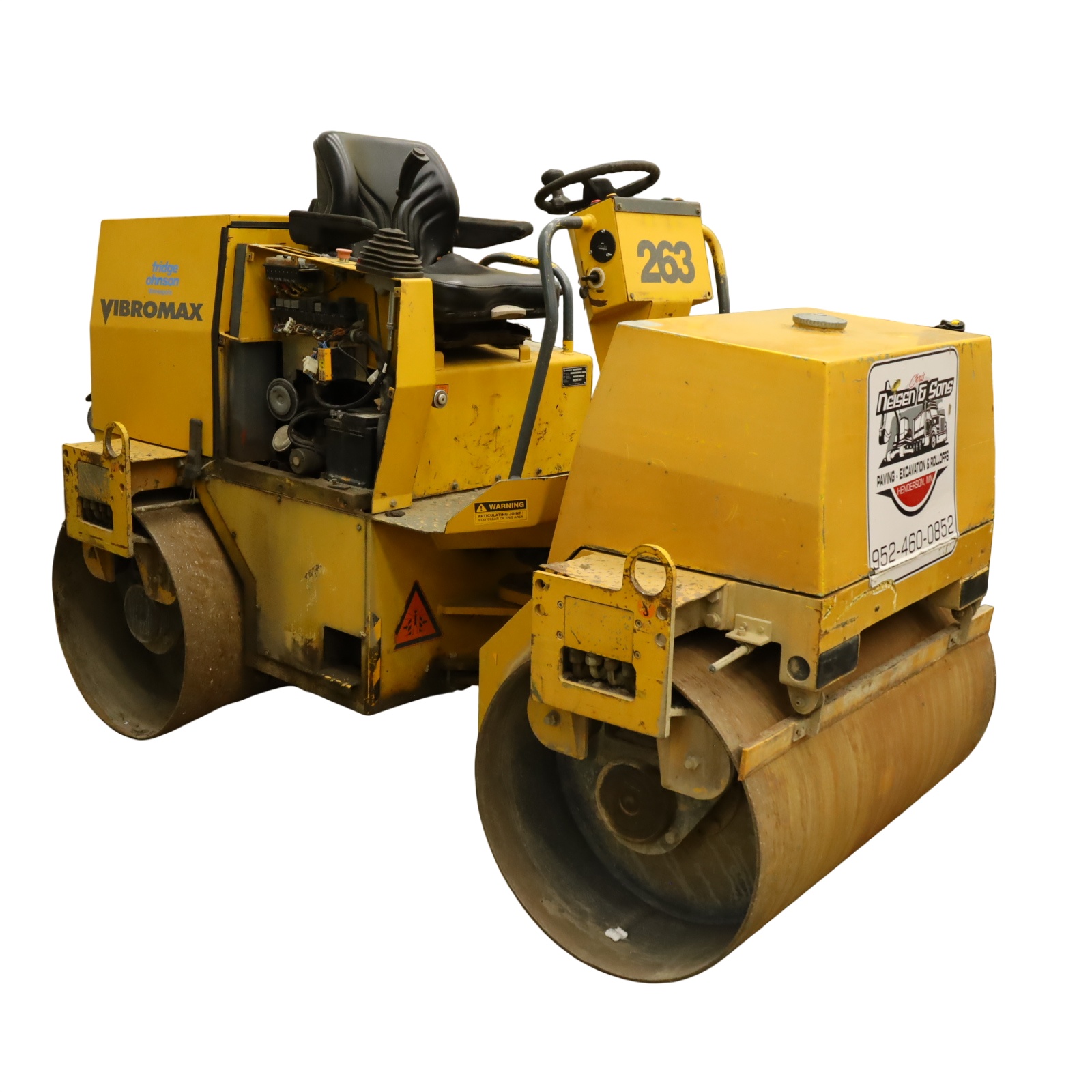

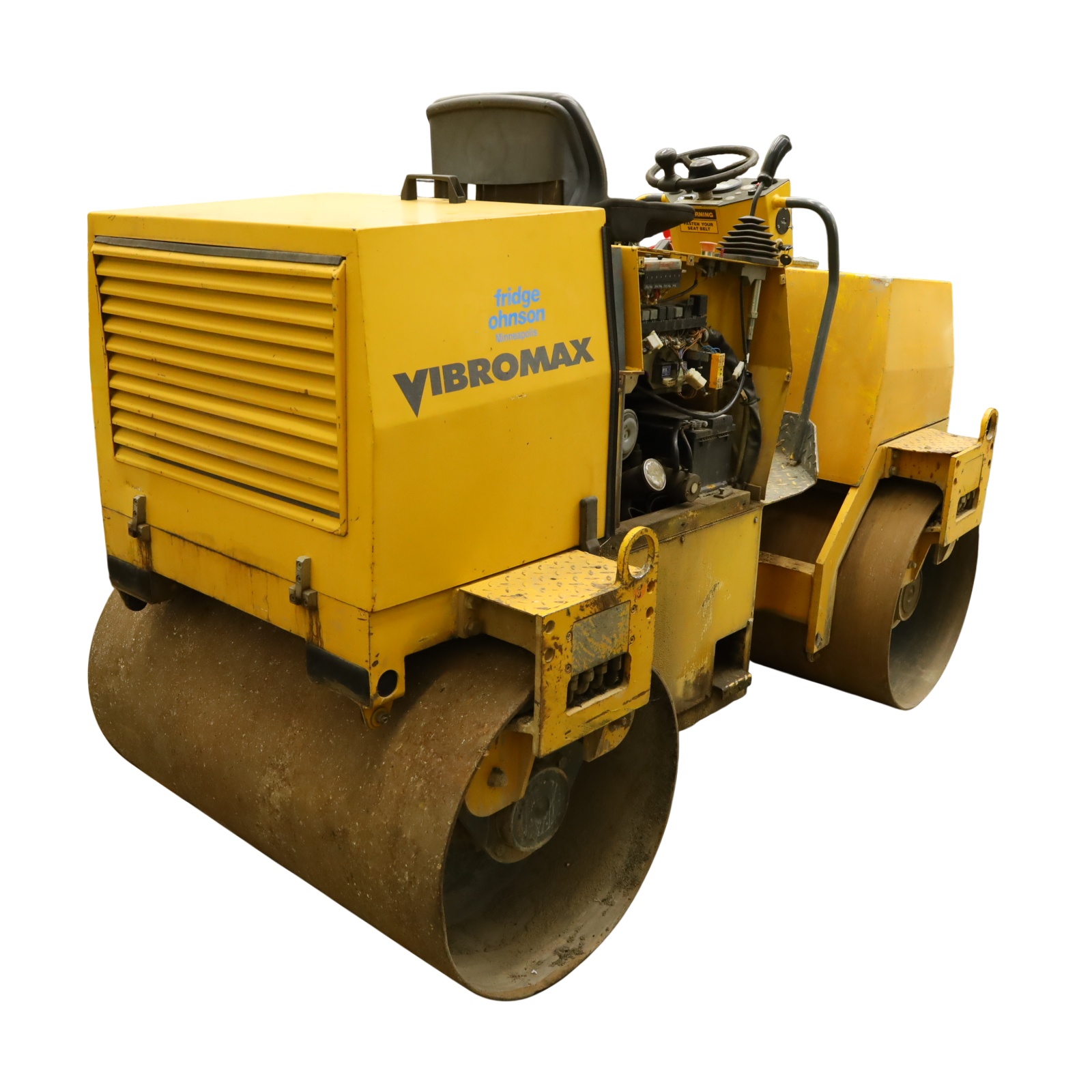

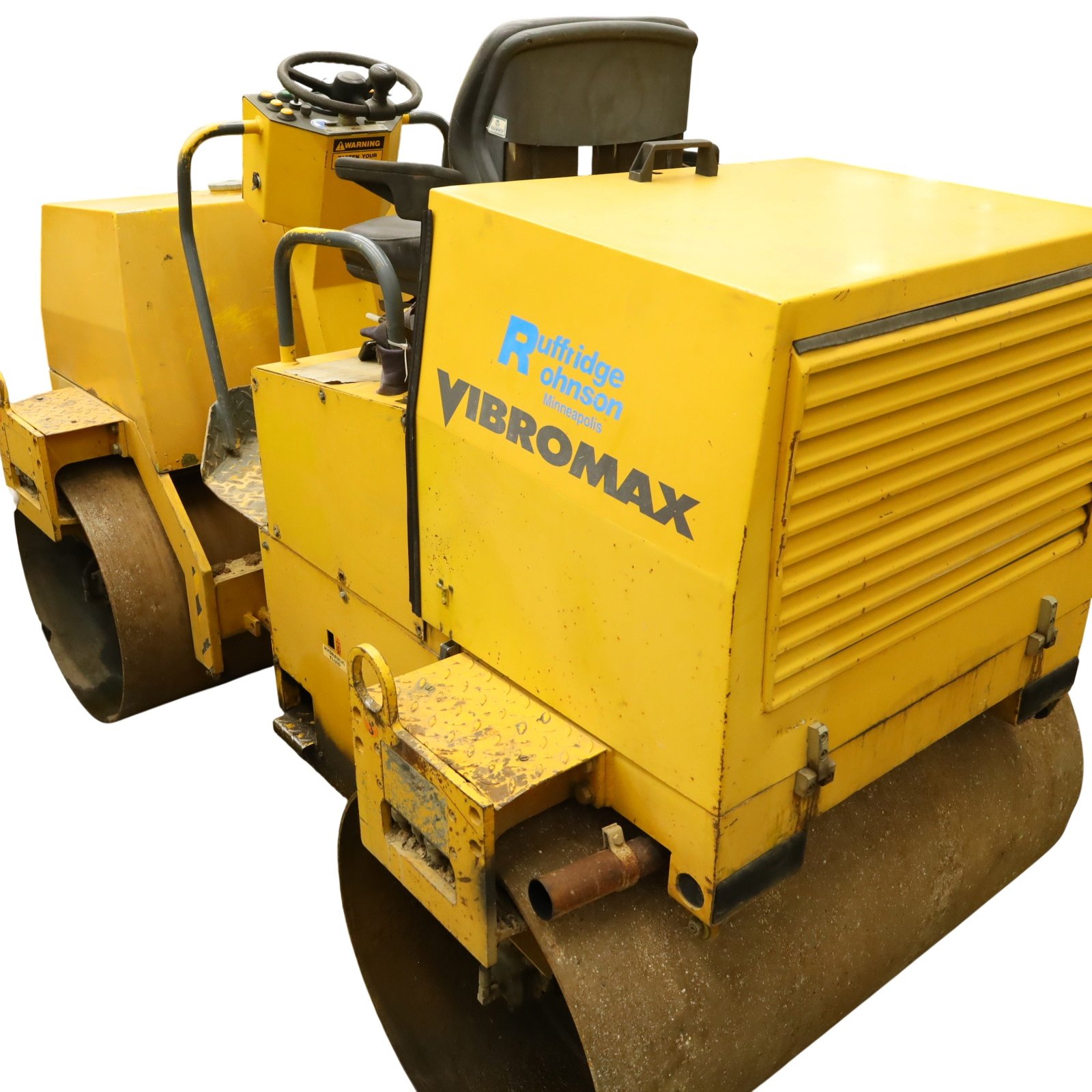

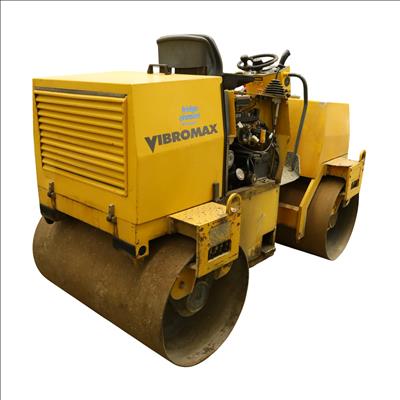

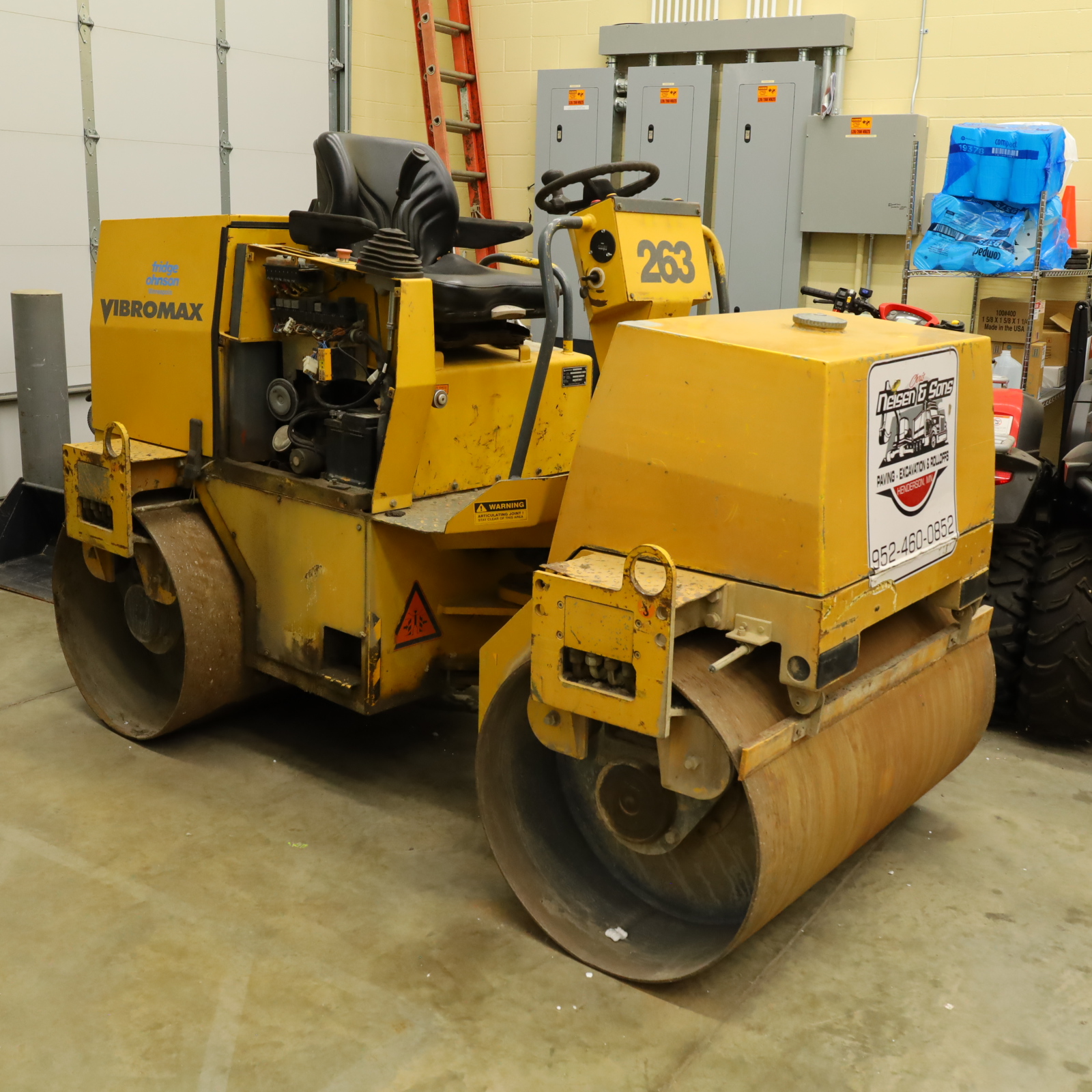

Vibromax W 263 2.6 Metric Ton Vibratory Tandem Roller - LOCAL PICKUP ONLY
product details
specifications
Features
A 2.6 metric ton vibratory tandem roller with an operating length of 8 ft 0 in, a width of 4 ft 3 in, and a height of 8 ft 3 in, weighing approximately 5,720 lbs. It is equipped with a 1200 mm (47 inch) drum width. Power is supplied by a Kubota D1403B water-cooled three-cylinder in-line diesel engine rated at 29.0 net horsepower at 2600 RPM, mounted in the rear chassis. Machine propulsion is driven by a Sauer Sunstrand variable displacement hydrostatic pump mounted to the flywheel end of the engine, which supplies oil to front and rear Poclain fixed displacement drum drive motors arranged in a parallel path and connected directly to the drums without gear reduction. The vibration system uses a fixed displacement gear pump mounted to the back of the propulsion pump, driving two gear motors—one on each drum's left side—in a series flow path, with options for vibration on the front drum only, rear drum only, both drums, or neither drum. Vibration circuit oil passes through an air-to-oil cooler at the engine radiator, and the exciter shafts and drum bearings are oil lubricated, eliminating the need for grease zerks.
Items included
Vibromax W 263 2.6 Metric Ton Vibratory Tandem Roller
Items not included
Right Side Panel
Protective Roll Bar
Condition

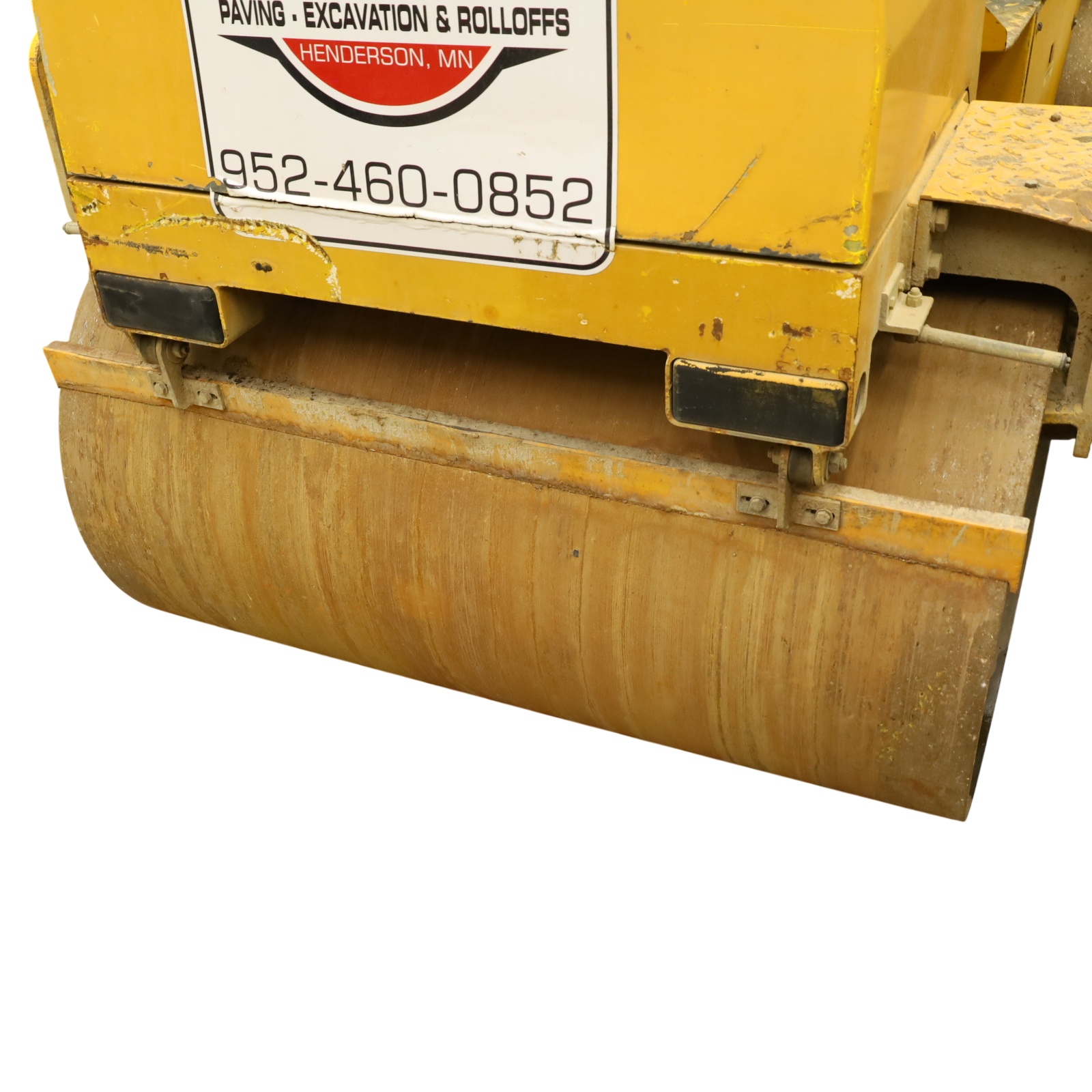

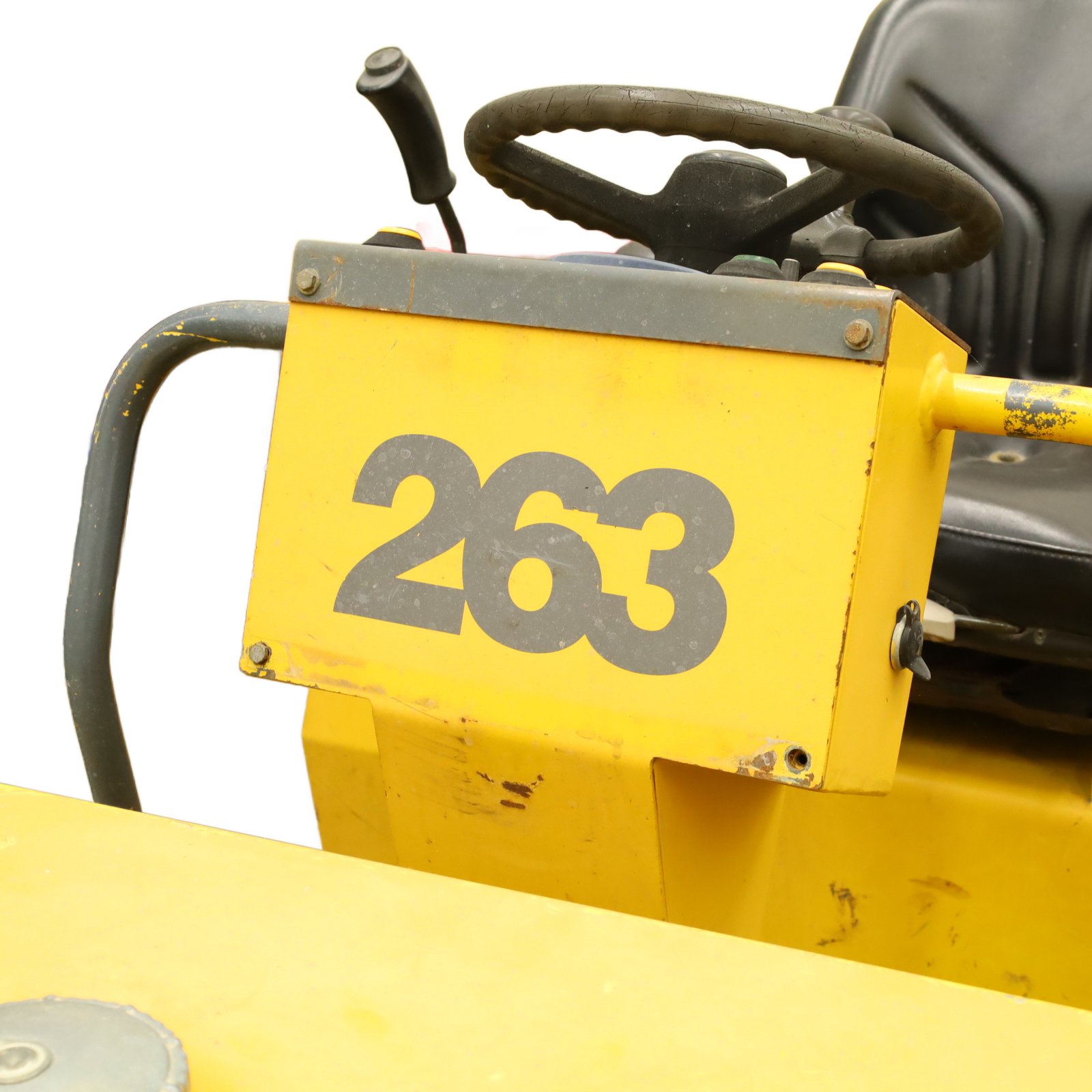

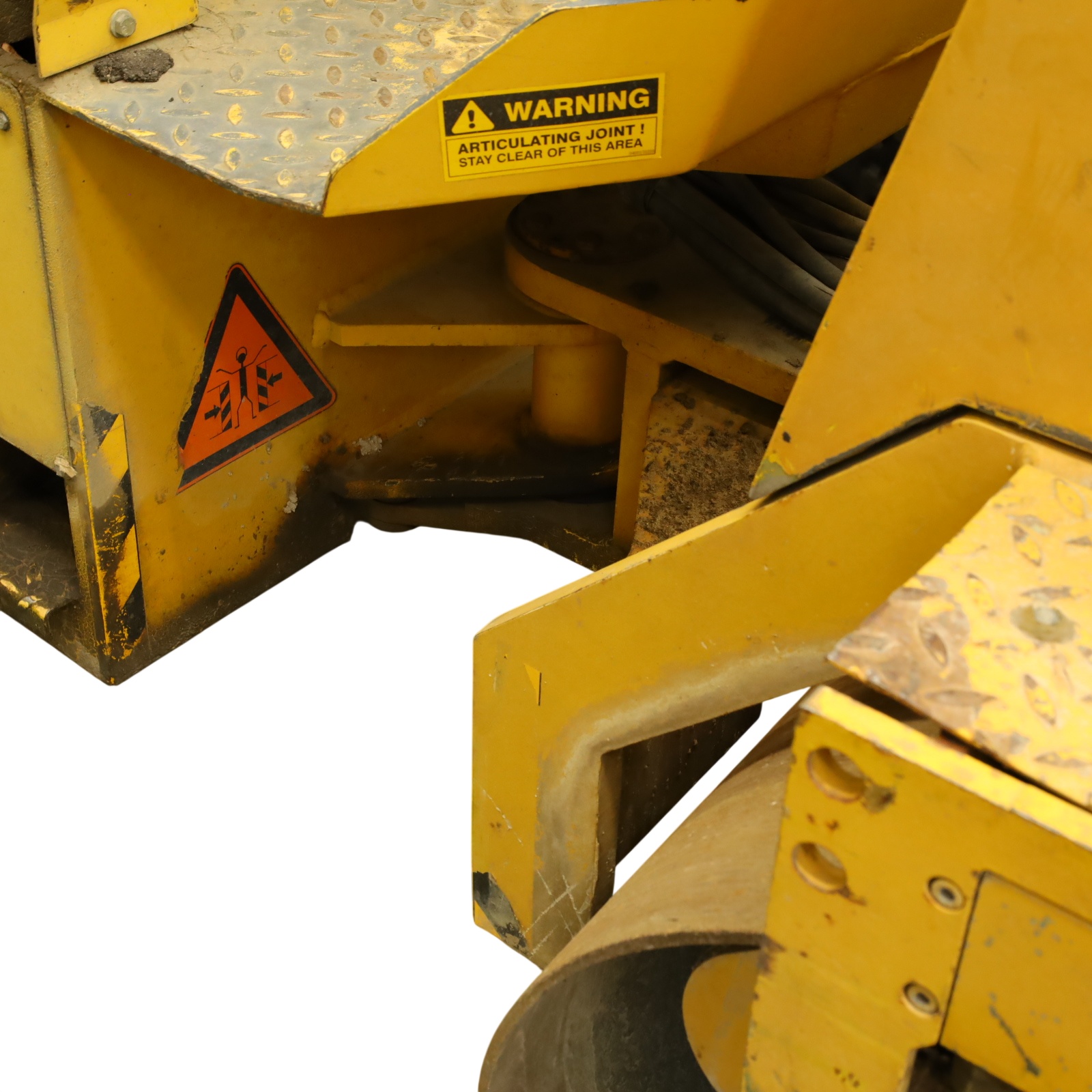

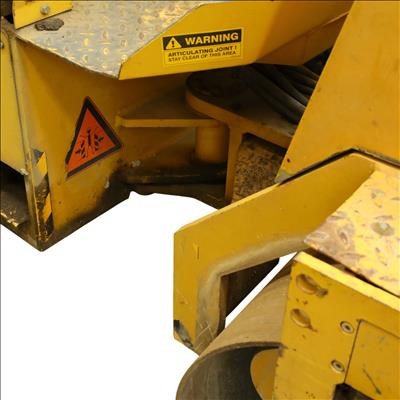

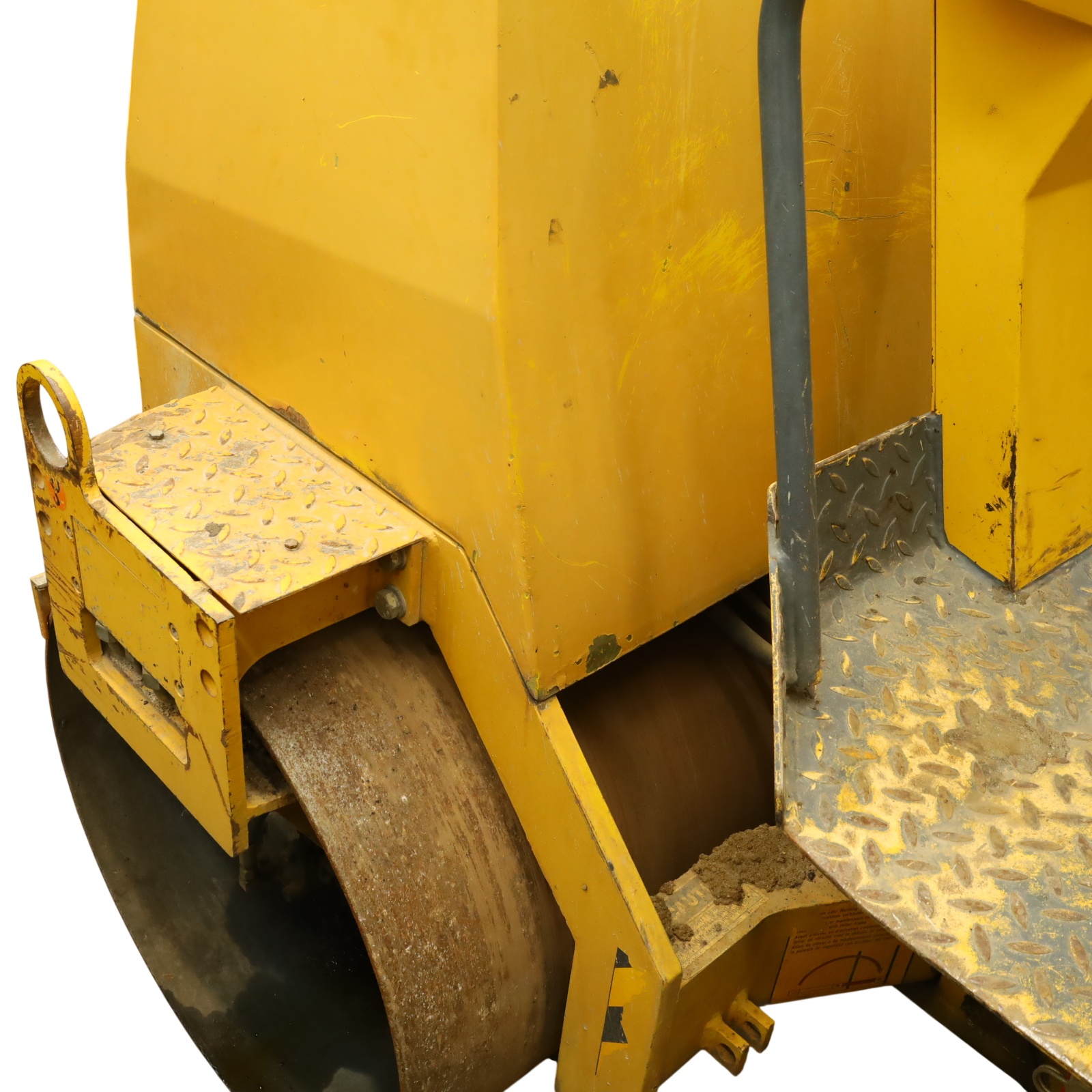

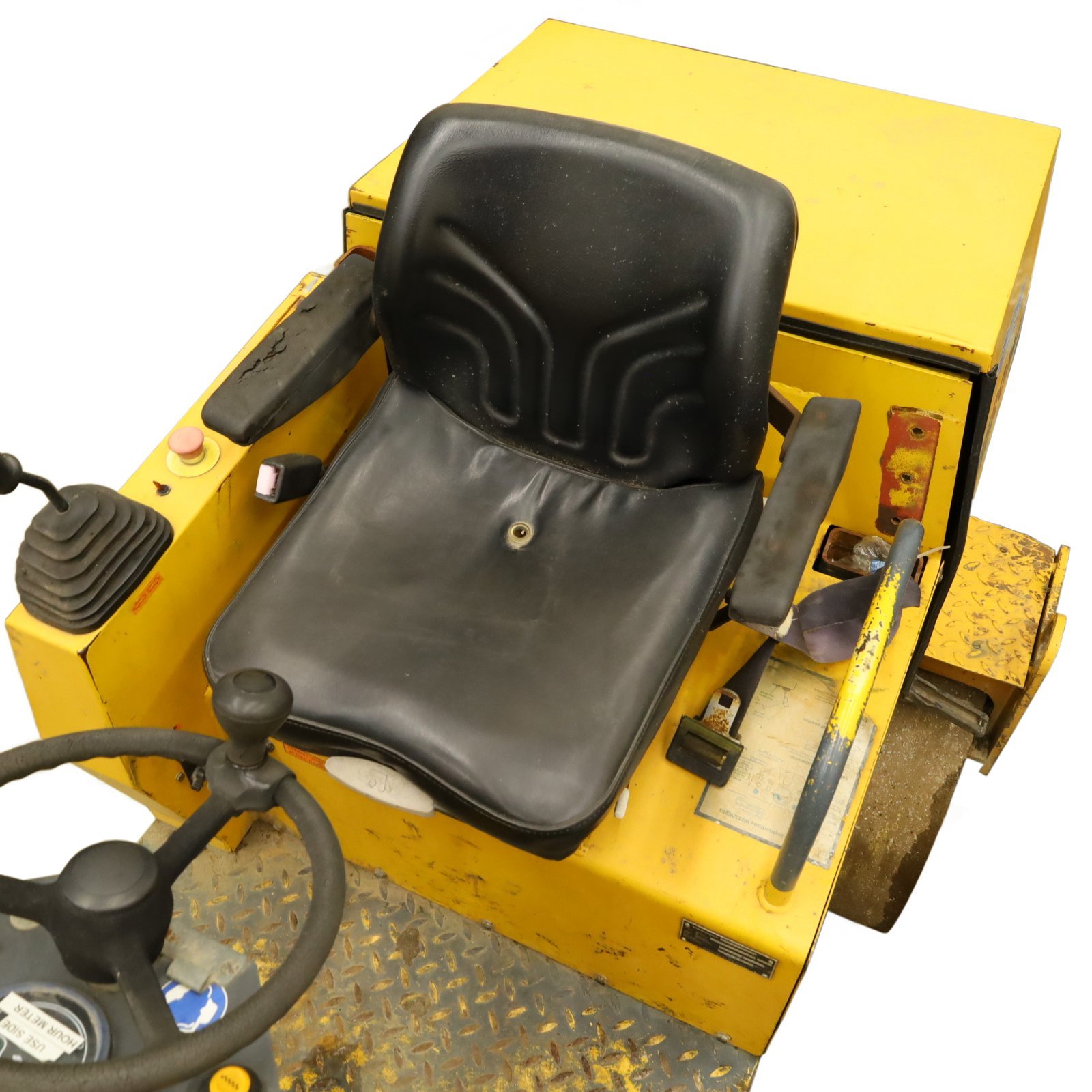

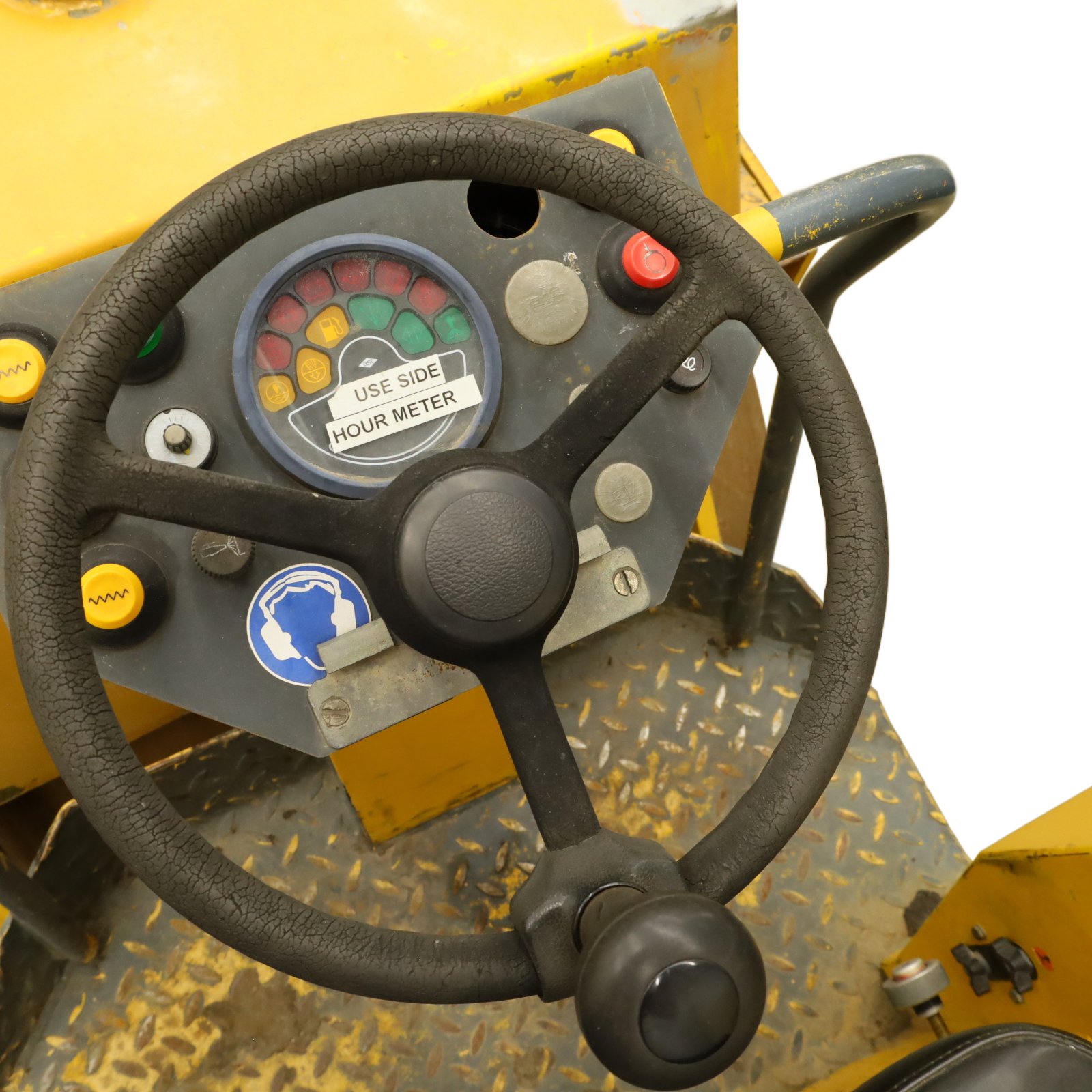

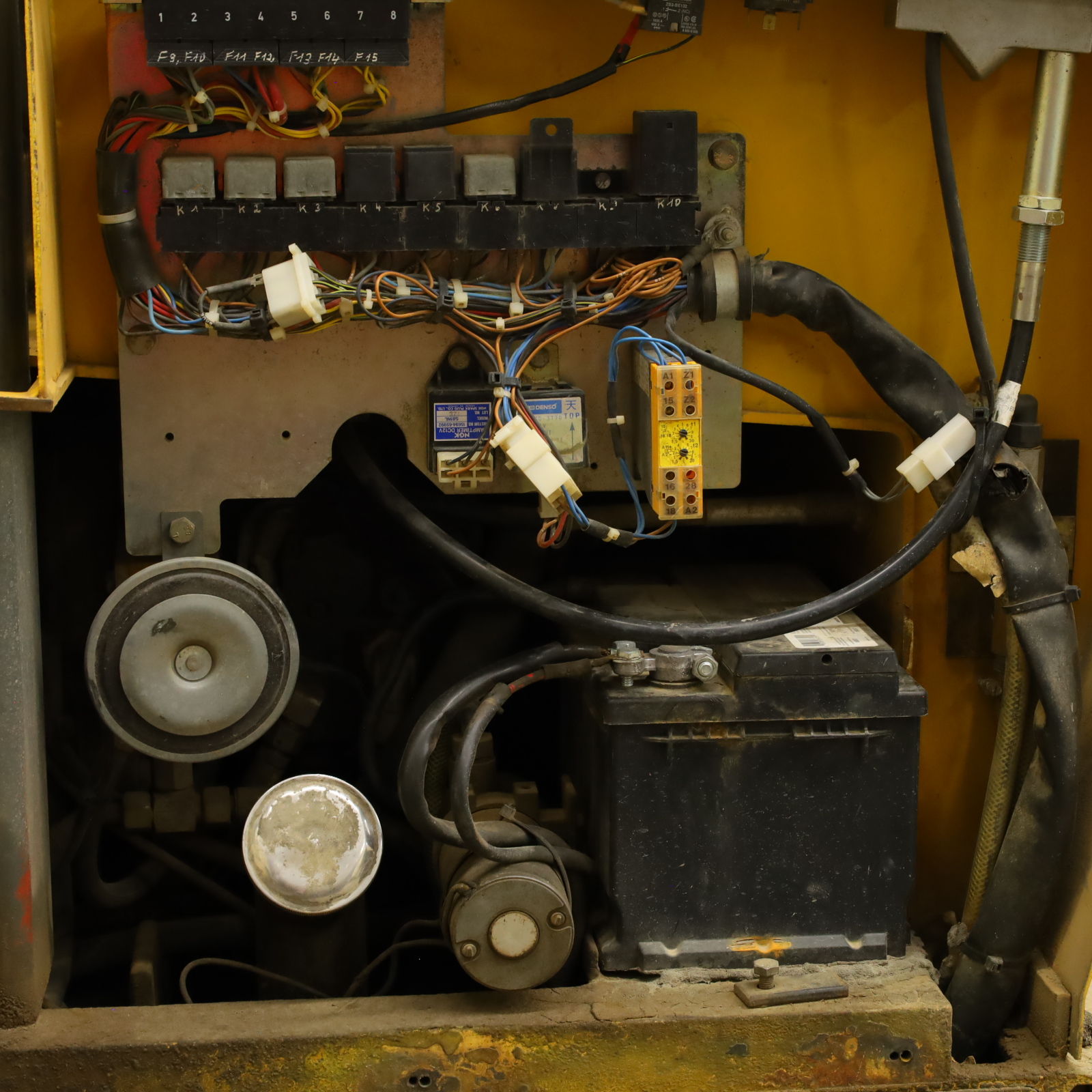

Vibromax Tandem Roller is previously owned. Shows signs of use with notable wear and tear on all sides of the unit. Some marks and dings on the rollers. Some wear on the seat and in the seating area and on the dashboard. This unit is missing the right side panel covering various electronic components. See photos for details.
return Policy
Orders are processed and shipped within one to two business days Monday through Friday 9:00 am – 5:00 PM. Your satisfaction is our primary goal! If for any reason you are not satisfied, we offer a 10 day money back guarantee from date of purchase for in-store pick-up orders and 15 day money back guarantee from date of purchase on shipped.
Product Location
Vibromax W 263 2.6 Metric Ton Vibratory Tandem Roller - LOCAL PICKUP ONLY
