Lightera DT03732-32 200 Micrometer ST Crimp Cleave Termination Kit

Name: Lightera DT03732-32 200 Micrometer ST Crimp Cleave Termination Kit
Brand: Lightera
SKU: 24523060067
Price: 799.99 USD
Availability: InStock

Brand: Lightera

$799.99

SKU: 24523060067

Available quantity: 1

product details

description

Lightera DT03732-32 200 Micrometer ST Crimp Cleave Termination Kit

specifications

Brand Lightera

MPN DT03732-32

Features

A field termination kit designed for terminating 200 micrometer core Standard HCS fibers with ST connectors, completing each end in approximately 2-3 minutes. The kit is compatible with ST connectors for 200/230 micrometer step-index HCS as well as 50/230 micrometer and 62.5/230 micrometer graded-index HCS fibers, and supports cable diameters of 1.8 mm, 2.2 mm, 2.5 mm, and 3.0 mm. Included components are a diamond cleave tool (DT03732-06, green spring), a fiber stripper (CP01229-02, white blade insert), a cable stripper (AP01224), a crimp tool (BT03865-03, red handles), and scissors capable of cutting through aramid yarn (AP01225), with the ST mating adapter identified as AP01960. Connectors produced with this kit exhibit a maximum insertion loss of 1.5 dB at 850 nm (typical 1.0 dB), a cable crimp retention of 50 lb (223 N), an operating temperature range of -40 to +80 degrees C, and an overall connector dimension of 2.75 in (69.9 mm). Associated insertion loss test kits (P10188-03, P10188-08, and P10188-09) are available to measure termination performance.

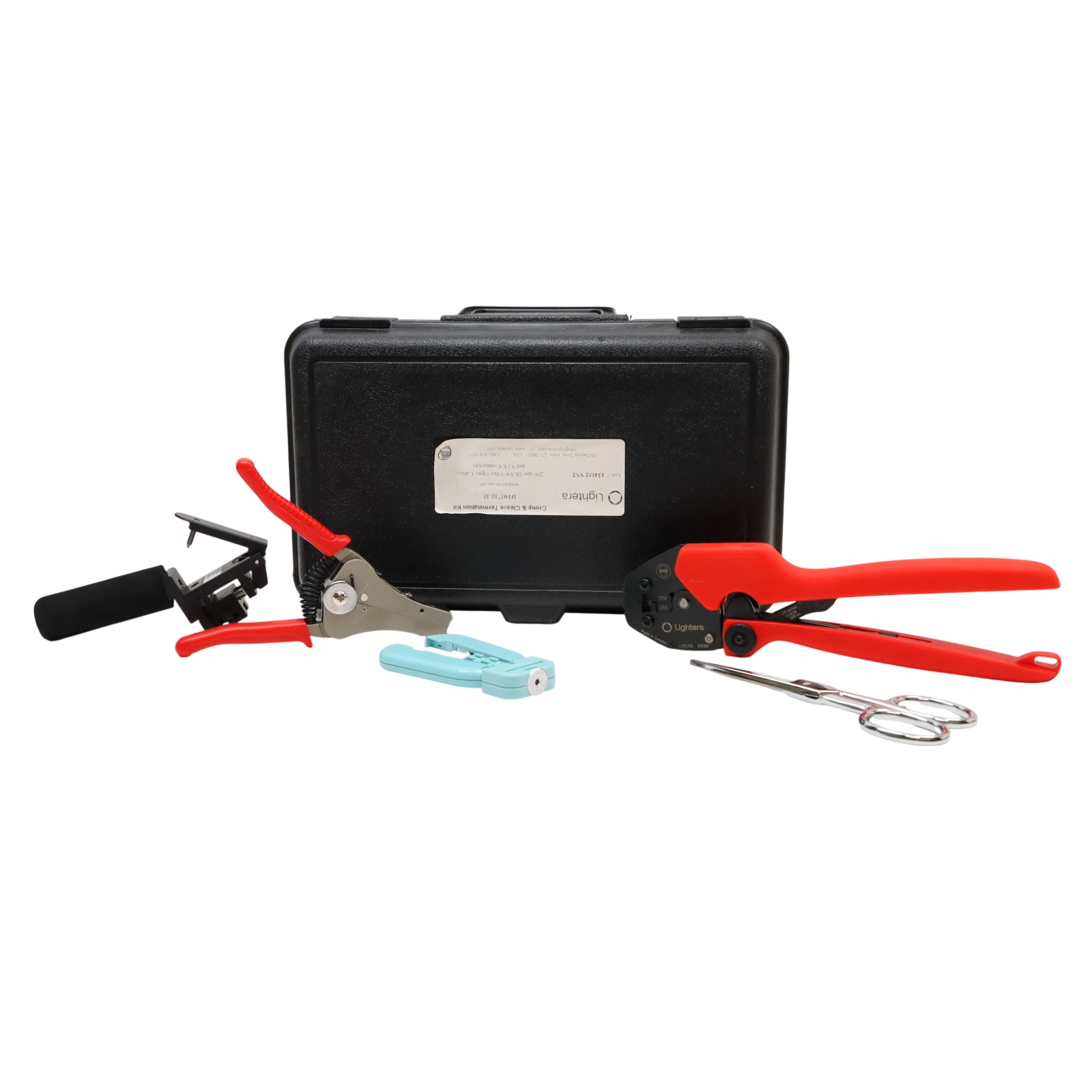

Items included

Lightera DT03732-32 200 Micrometer ST Crimp Cleave Termination Kit

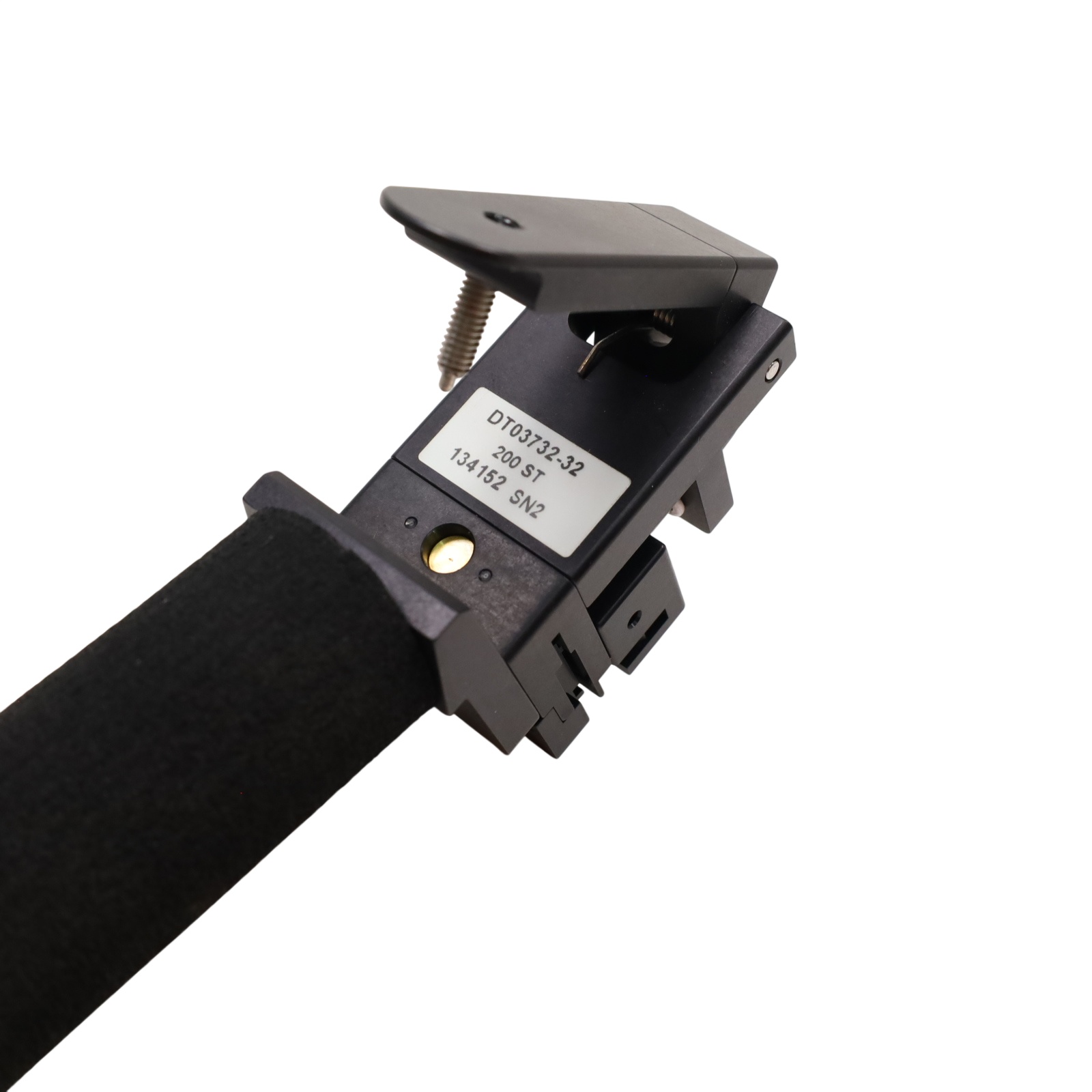

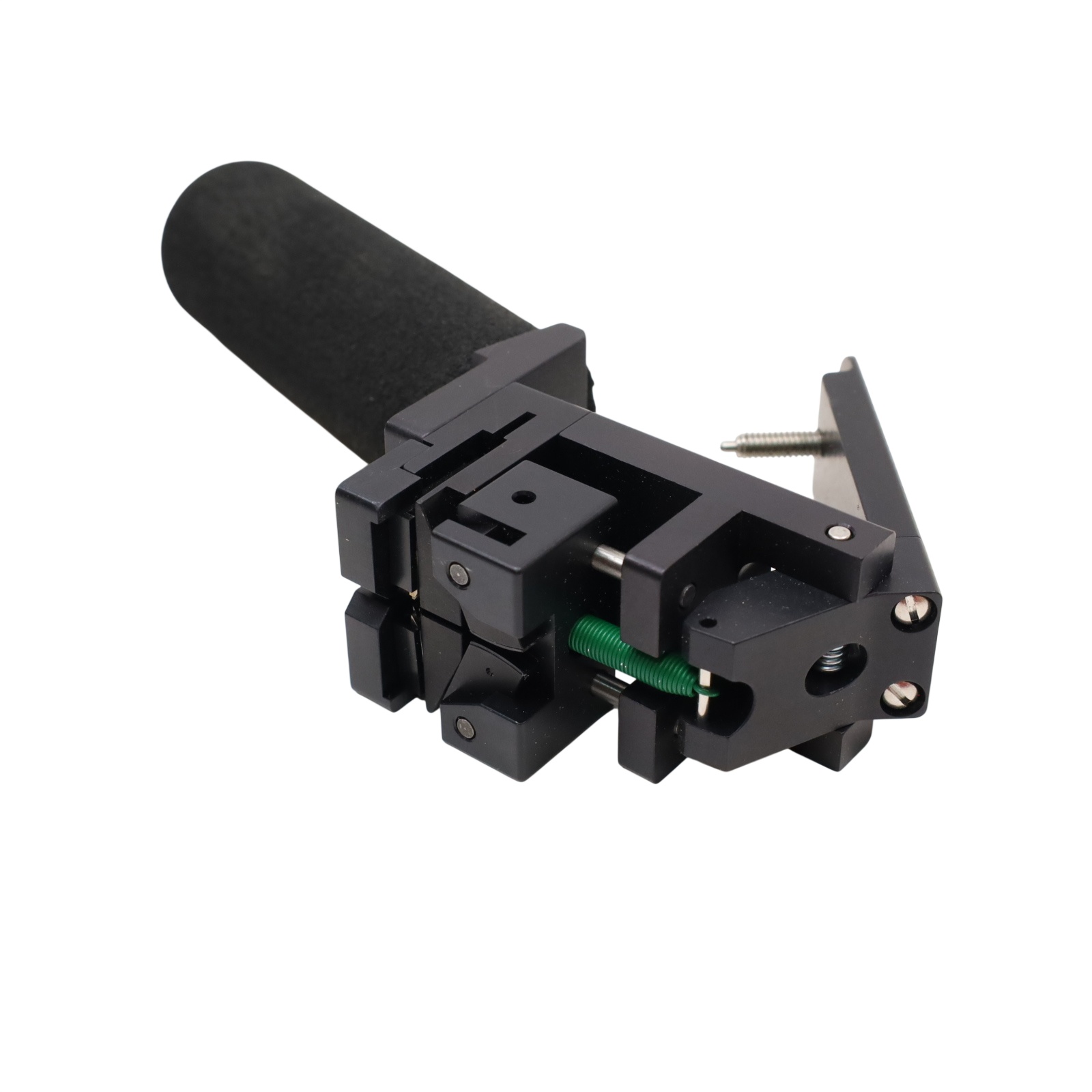

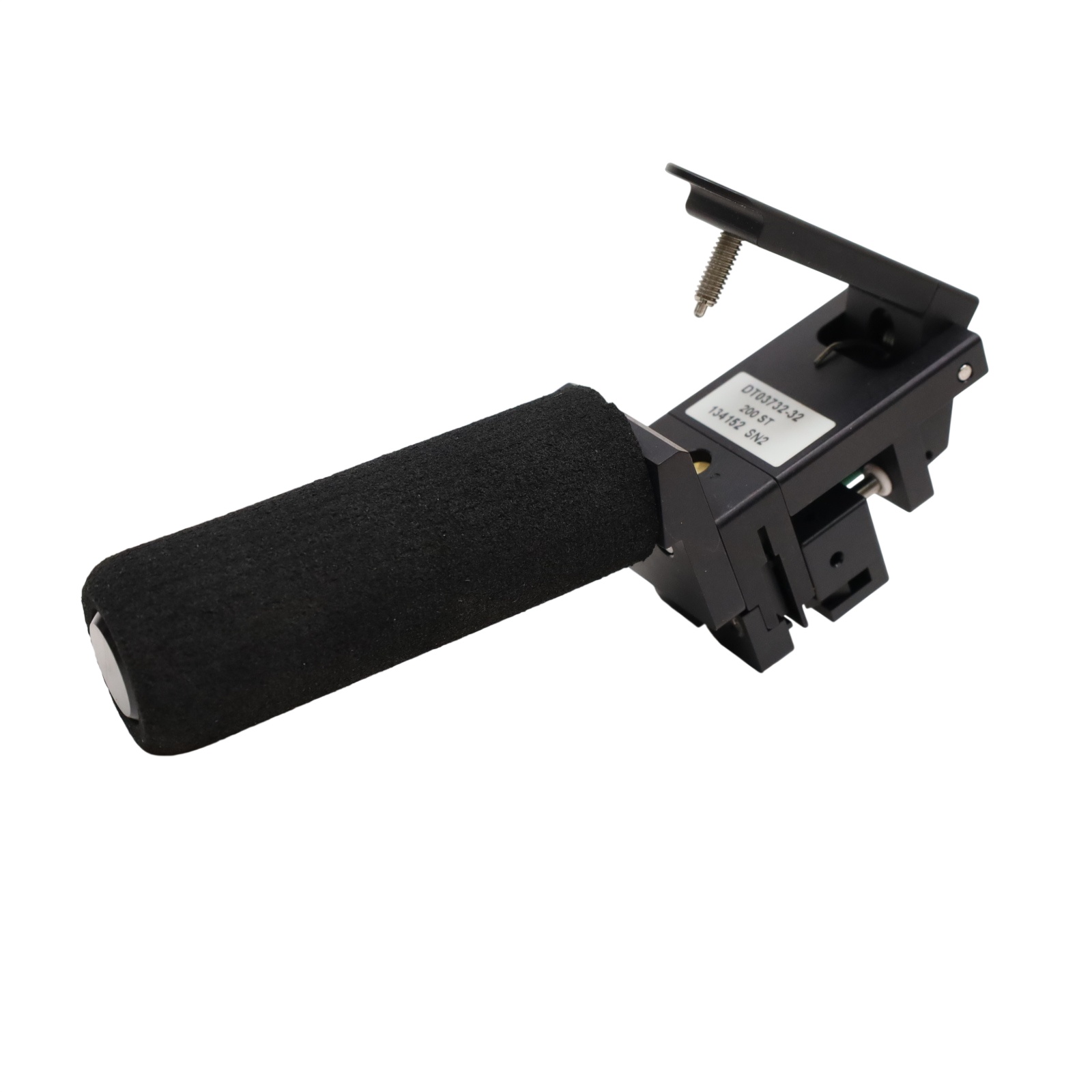

Diamond Cleave Tool

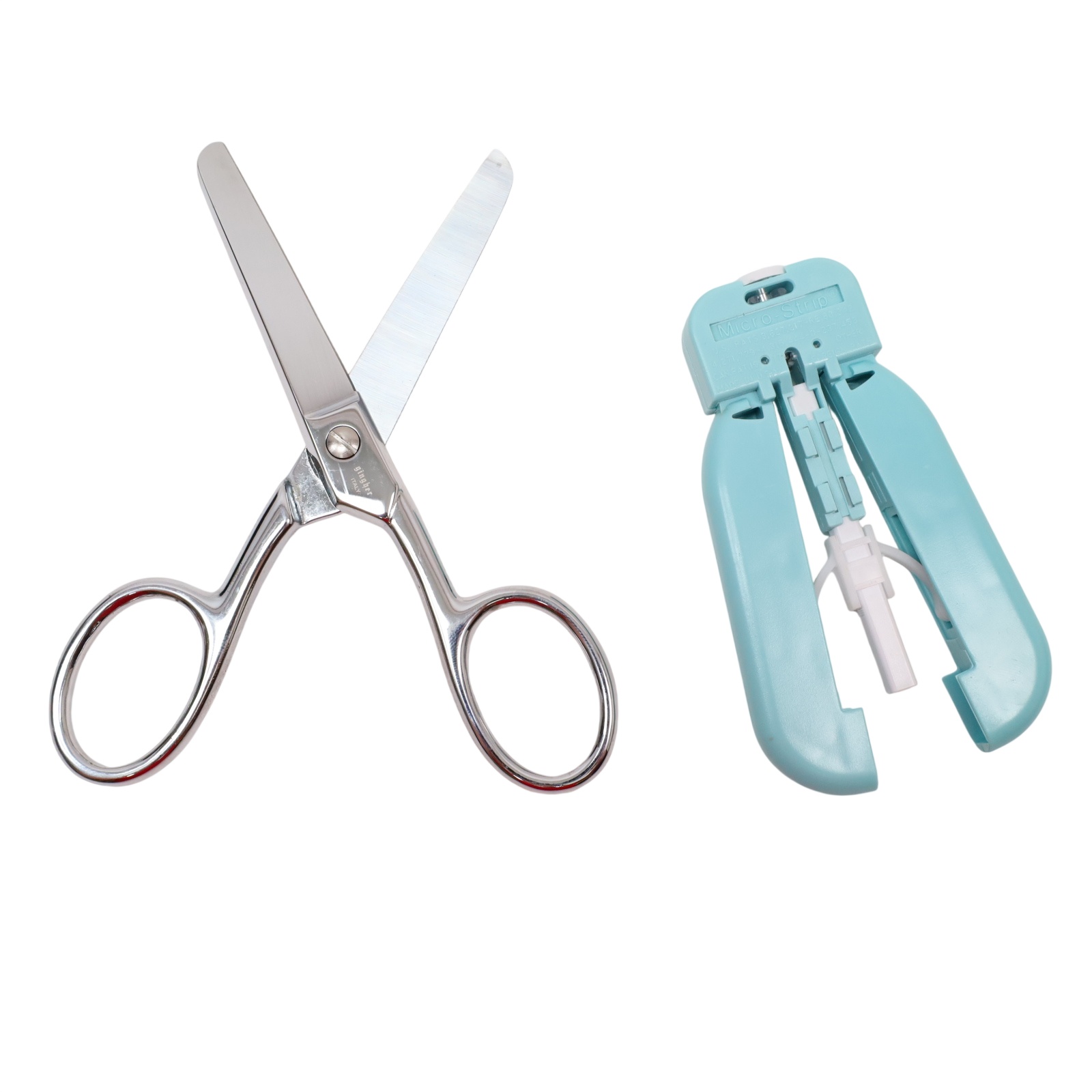

Fiber Stripper

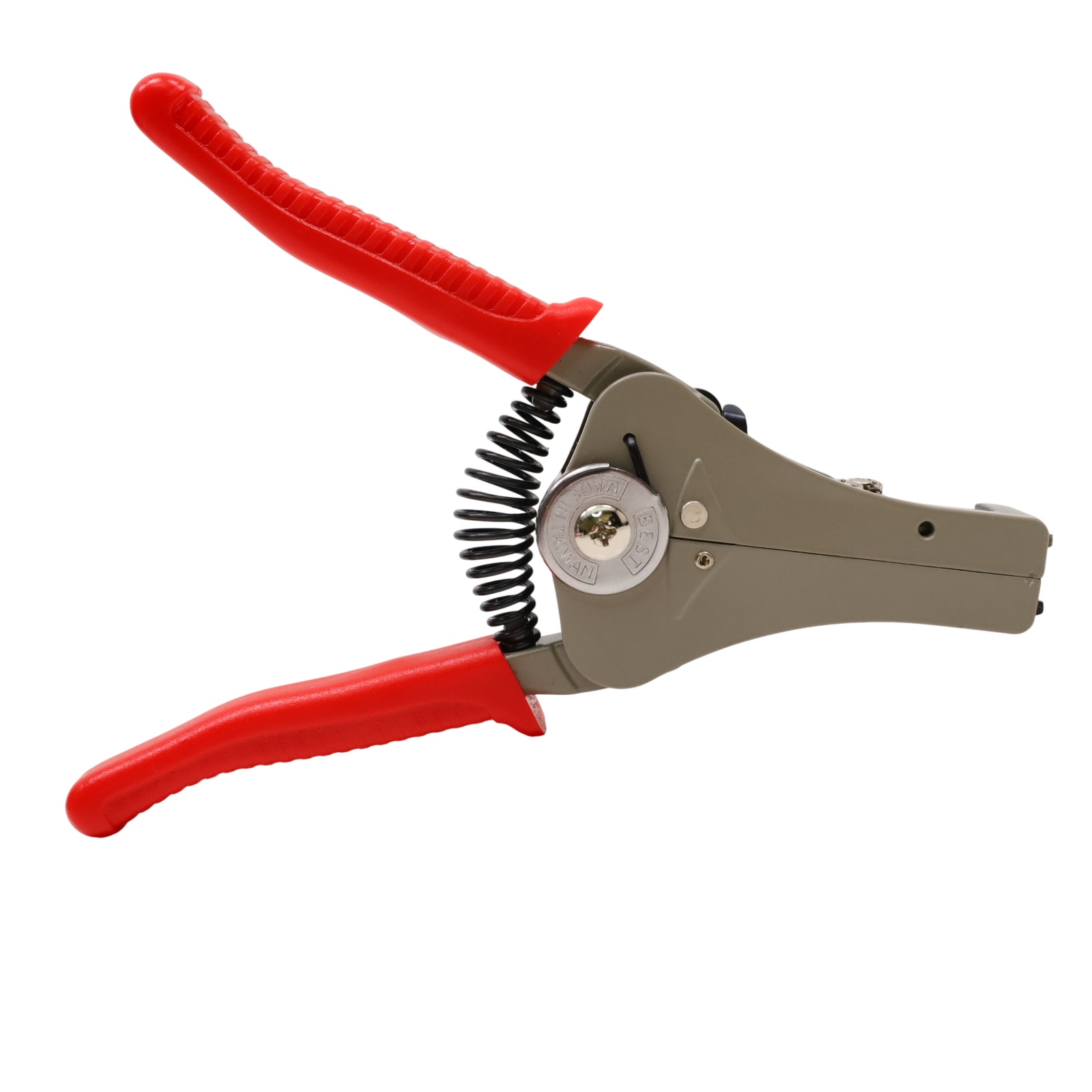

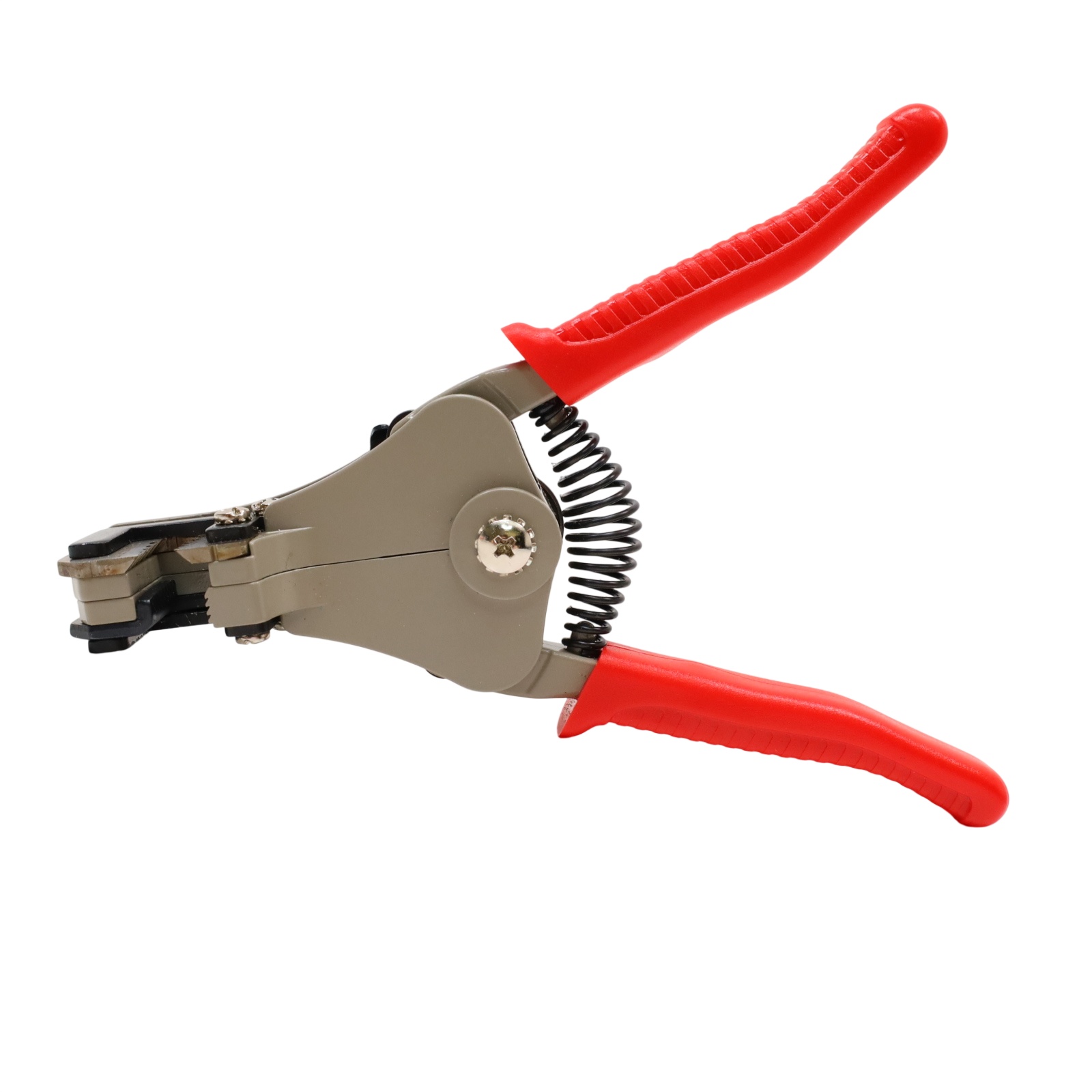

Cable Stripper

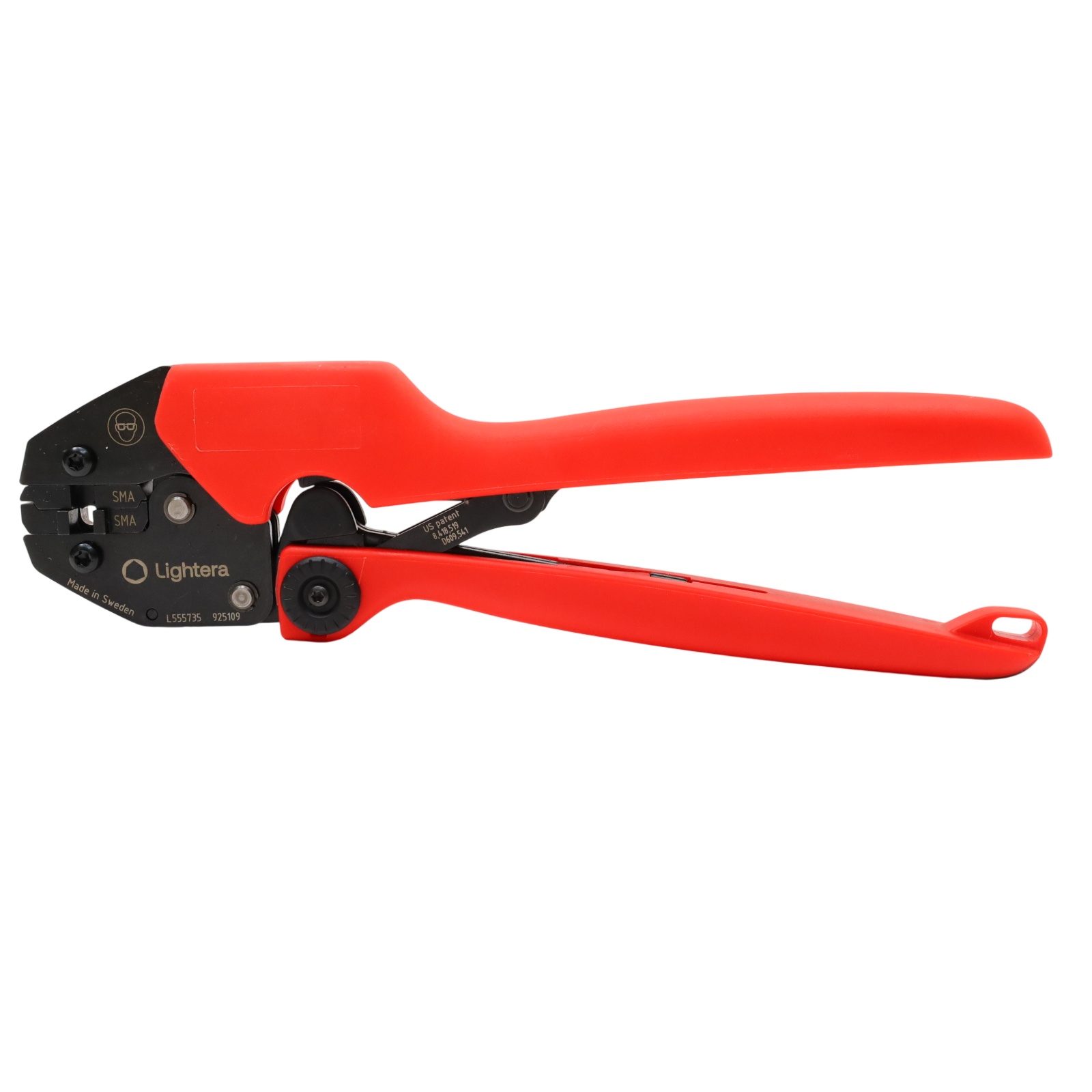

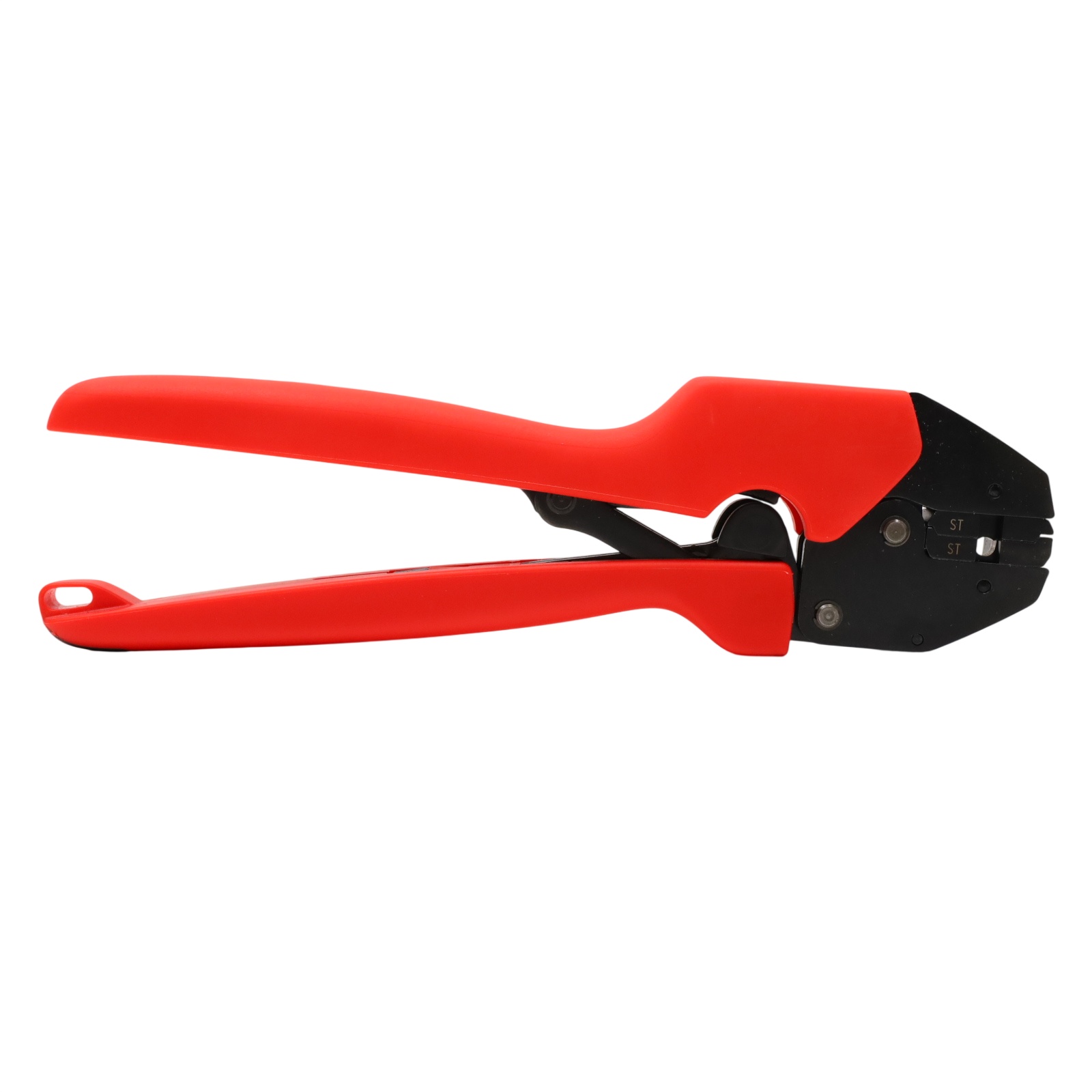

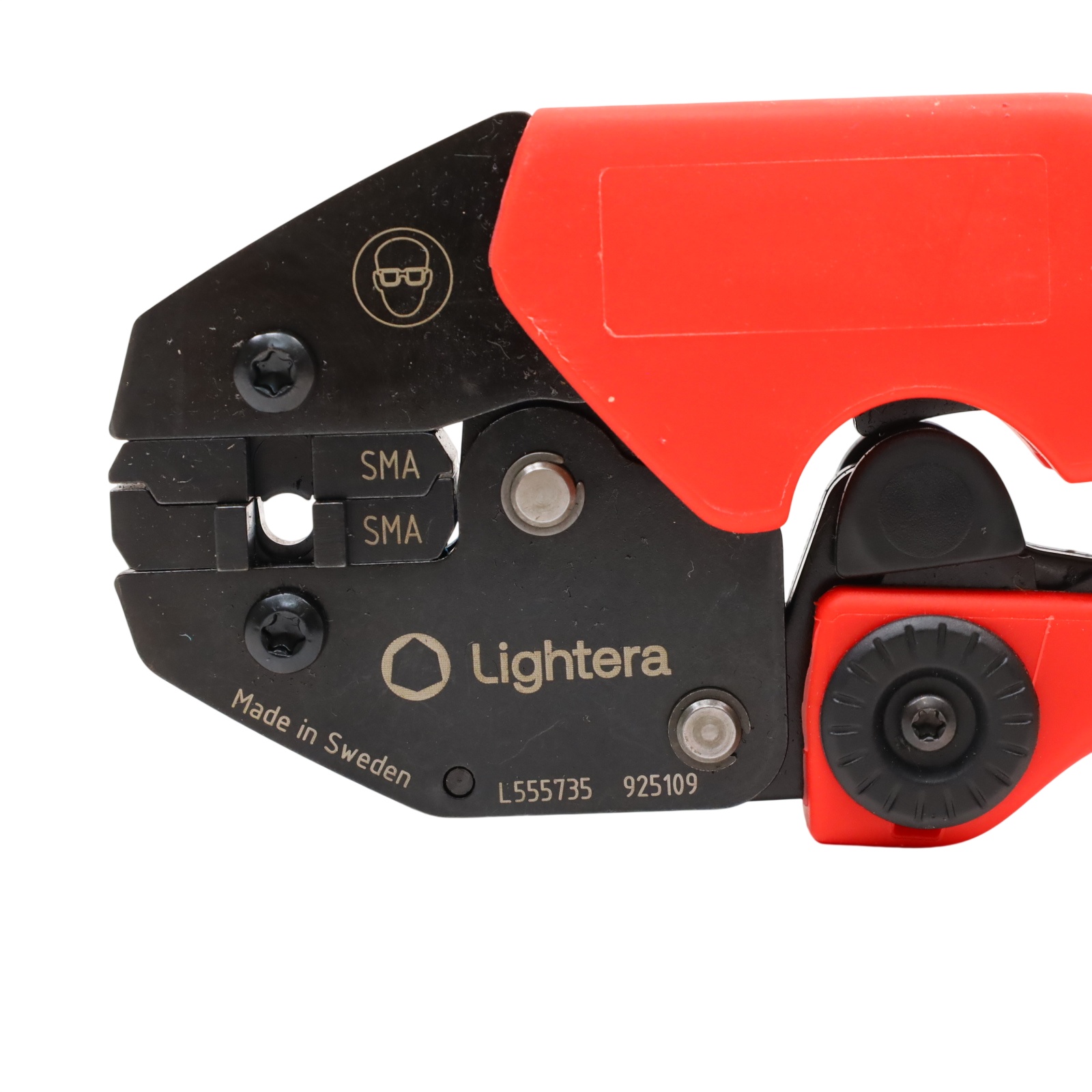

Crimp Tool
Scissors

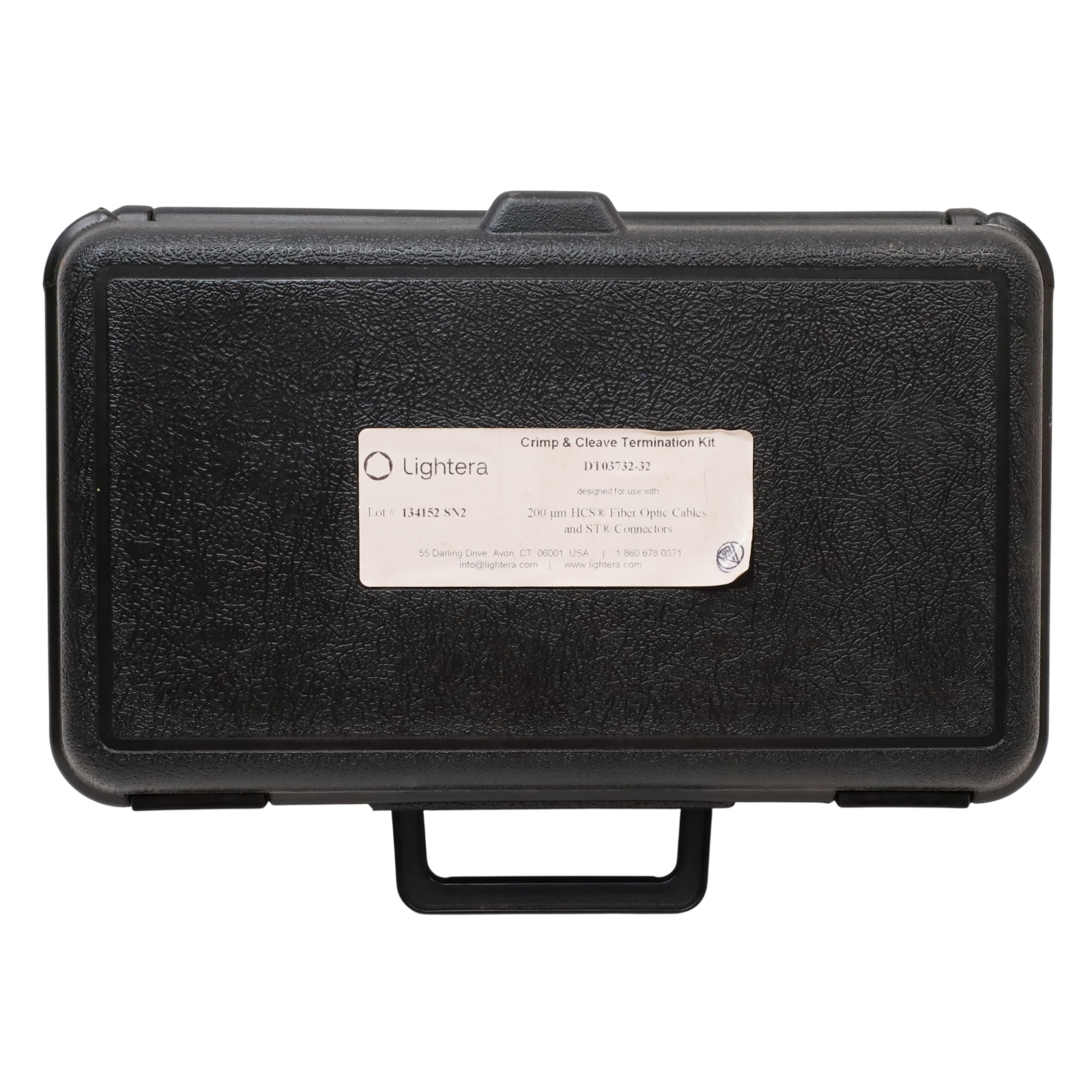

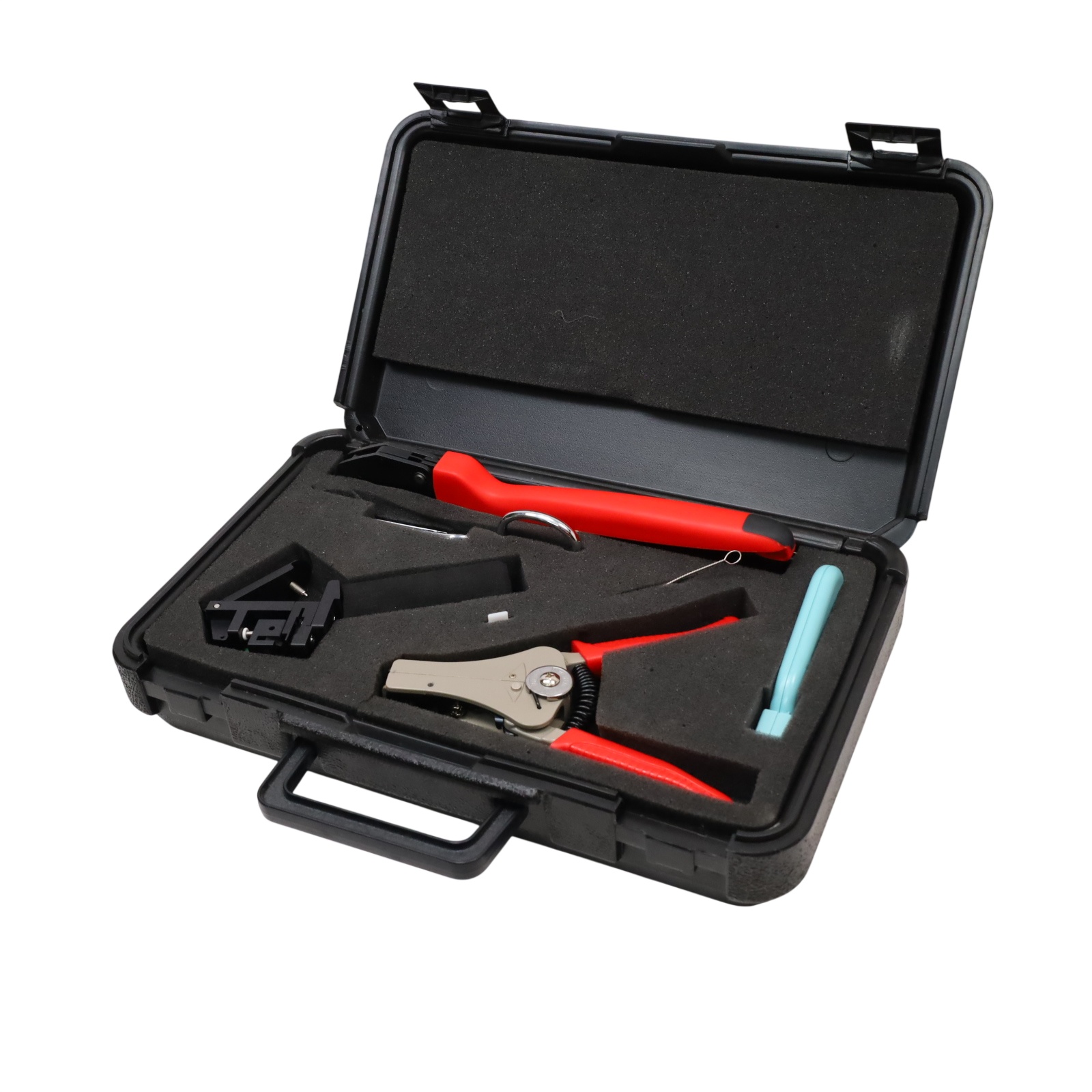

Carrying Case

Condition

Lightera Termination Kit is previously owned. Kit is in good condition with light cosmetic wear on the tools. See photos for details.
