Kicker KEYLOC 2-Channel Smart Line Output Converter
product details
description
Kicker KEYLOC 2-Channel Smart Line Output Converter
specifications
Features

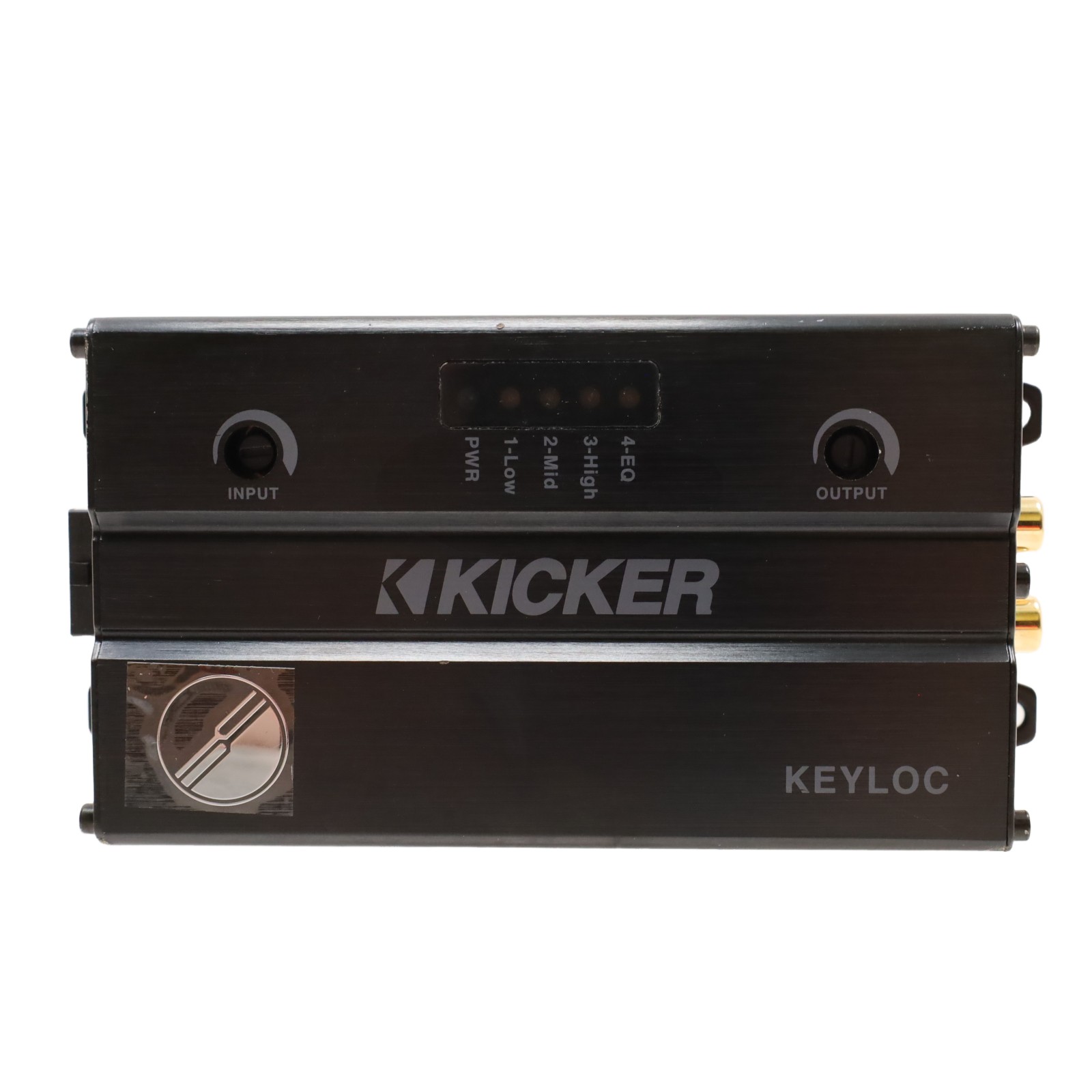

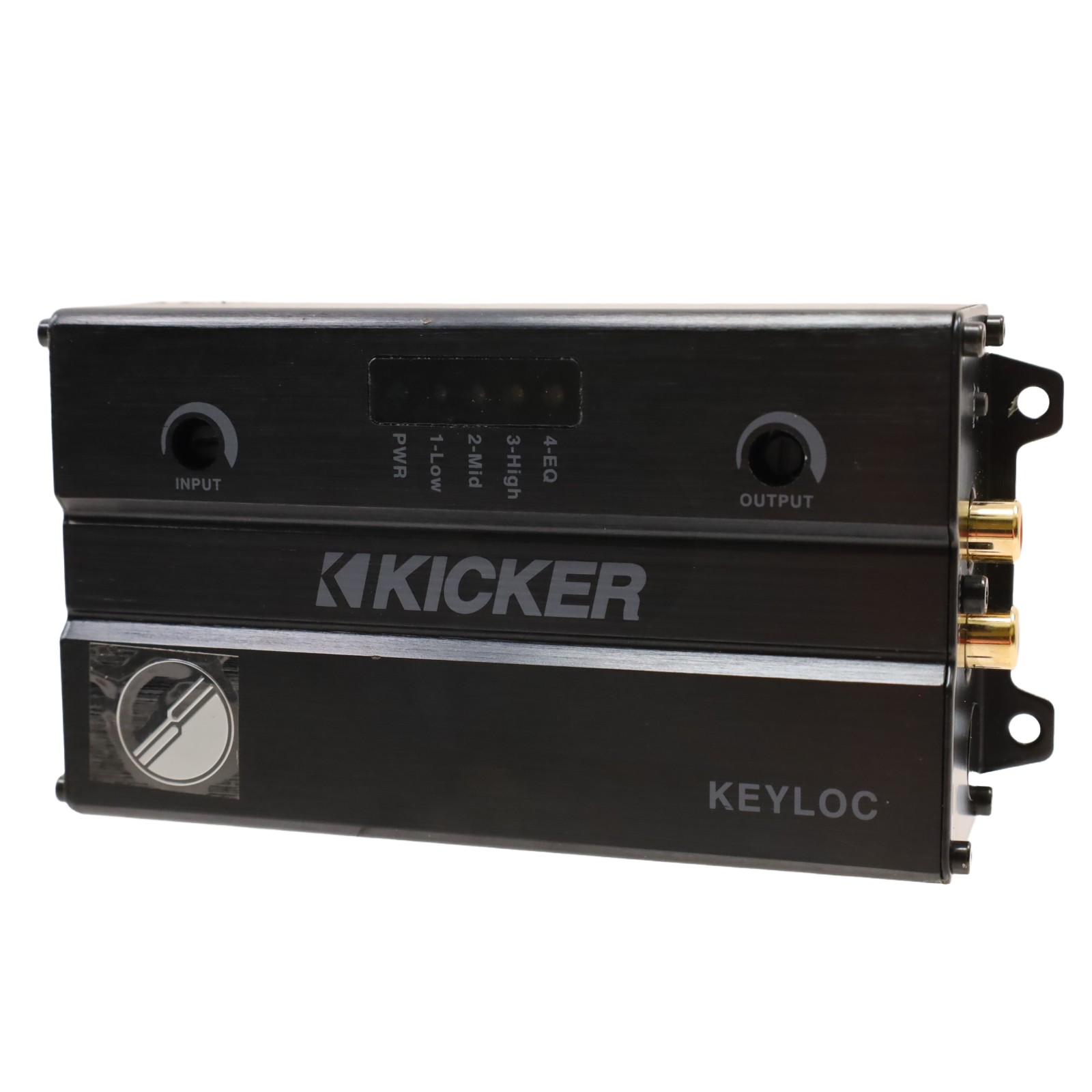

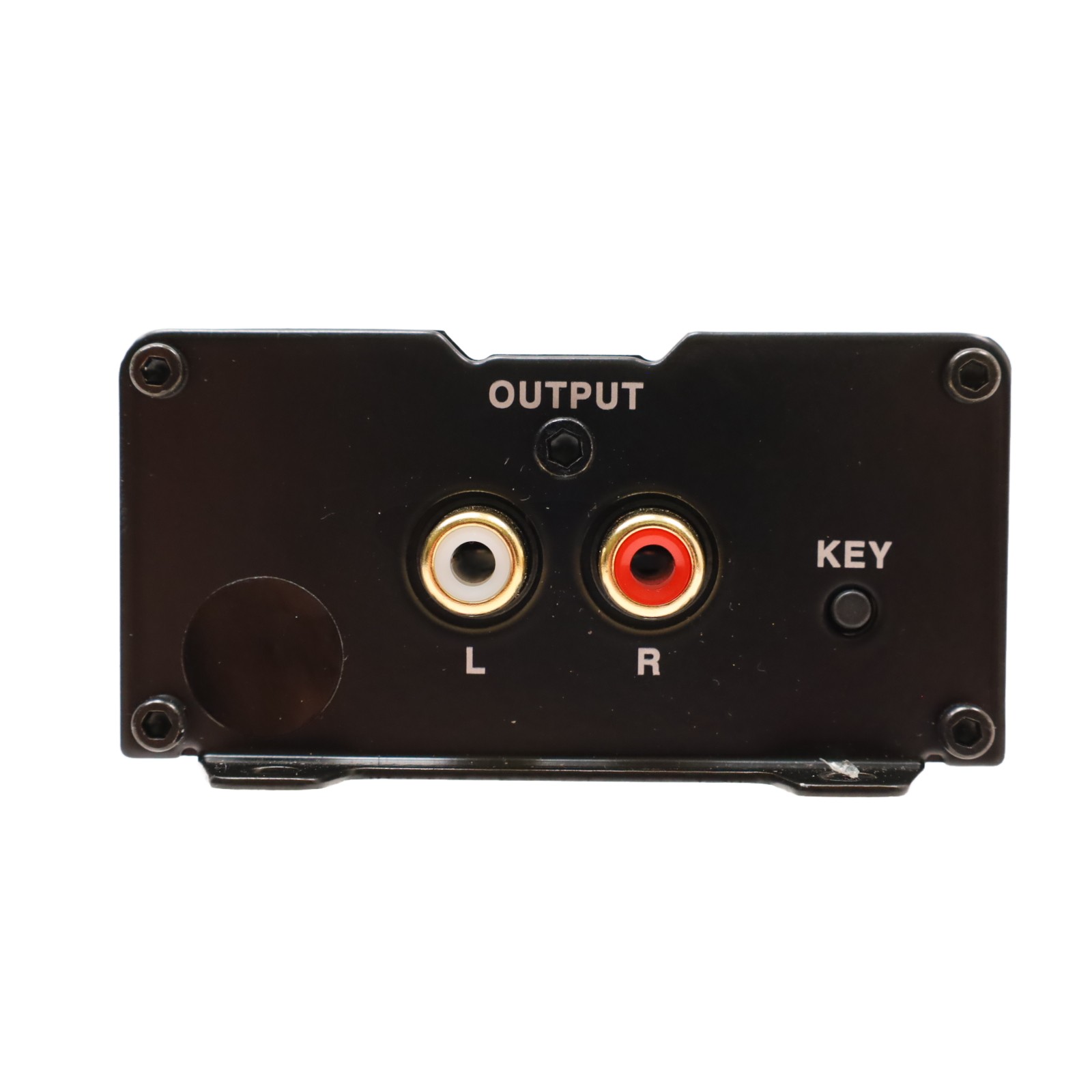

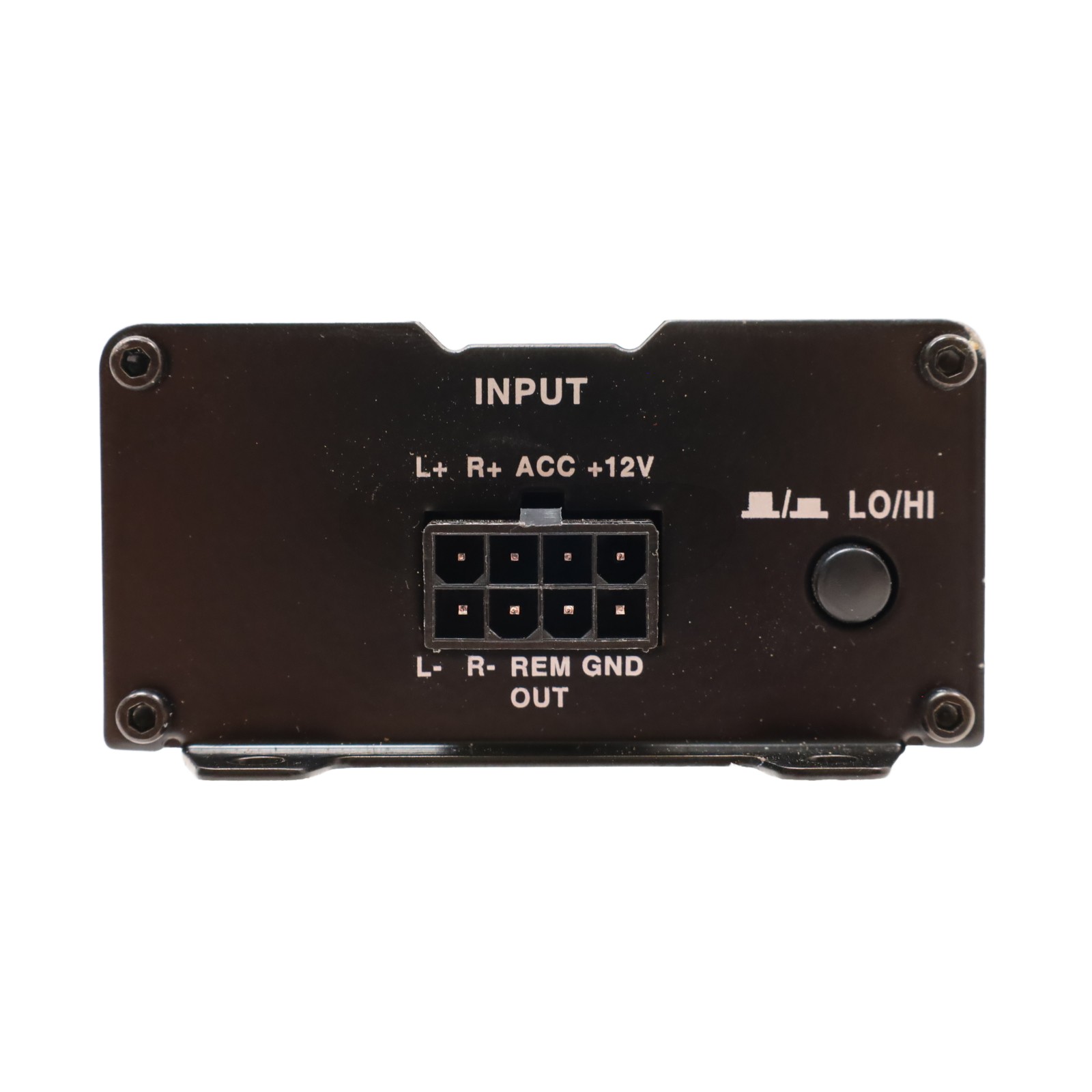

A 2-channel smart line output converter designed to improve the audio signal from a factory system when adding aftermarket amplifiers. It uses DSP processing to detect, analyze, and correct factory audio treatments including crossovers, equalization, time delay, and all-pass filters, aiming for a smooth frequency response and level-matched left and right channels. The converter powers on automatically by sensing DC offset between 2.5 V and 6 V on the speaker-level inputs, or it can be triggered by a remote turn-on wire, and it provides a +12 V remote output for powering additional equipment. Frequency response correction uses EQ with Q values from 0.5 to 10 and up to ±12 dB of boost or cut, while time delay defeat operates from 0.06 mS to 10 mS with 0.06 mS accuracy. The unit can correct up to three all-pass filters on one channel with Q values from 0.5 to 3.5, and it starts in Passive Frequency Detection mode to identify the frequency bands available on each speaker input channel. During setup, the converter analyzes test tones played through the system, with three top-panel LEDs indicating low (20 Hz - 200 Hz), mid (200 Hz - 2 kHz), and high (2 kHz - 20 kHz) frequency detection for each channel.
Items included

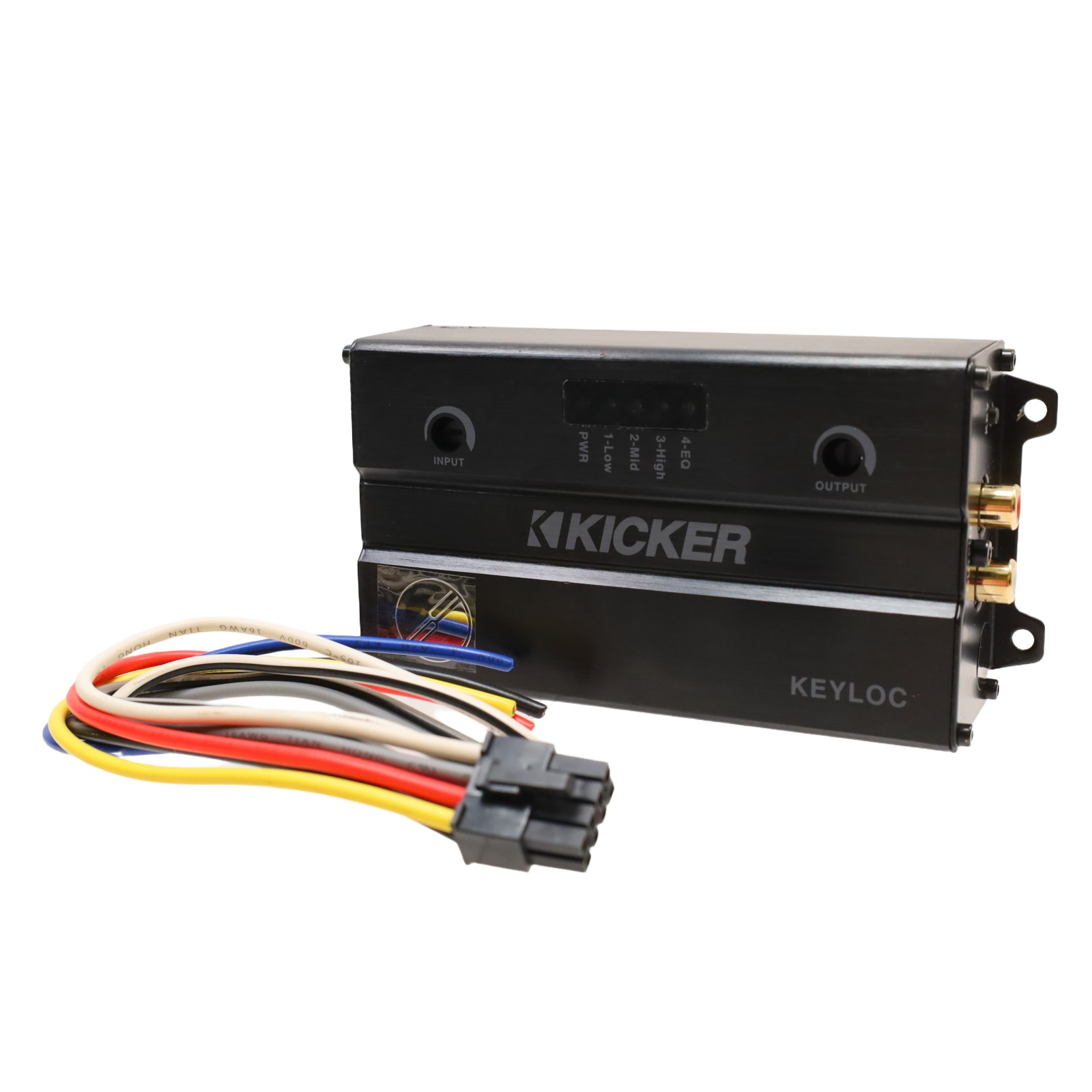

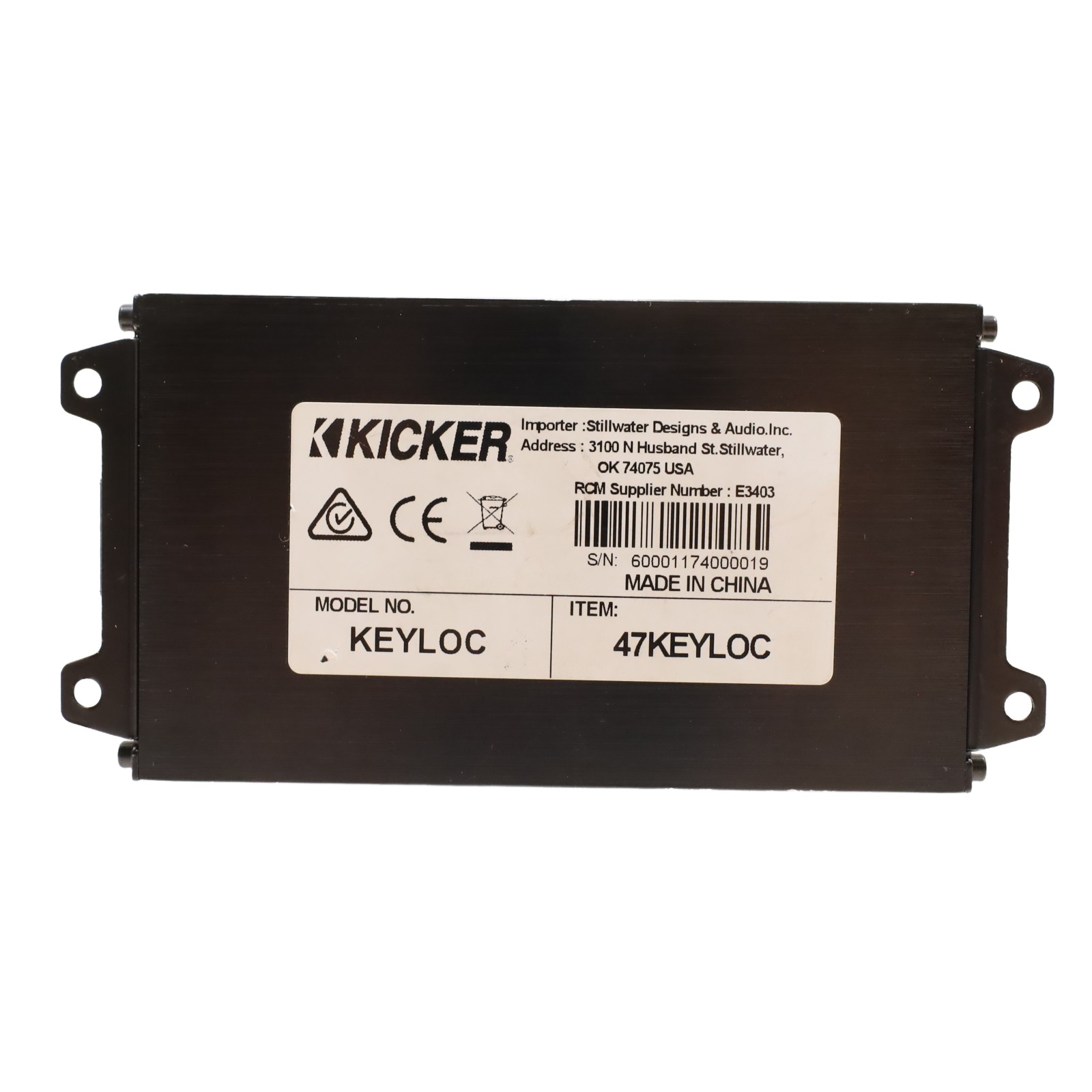

Kicker 47KEYLOC 2-Channel Smart Line Output Converter
Condition

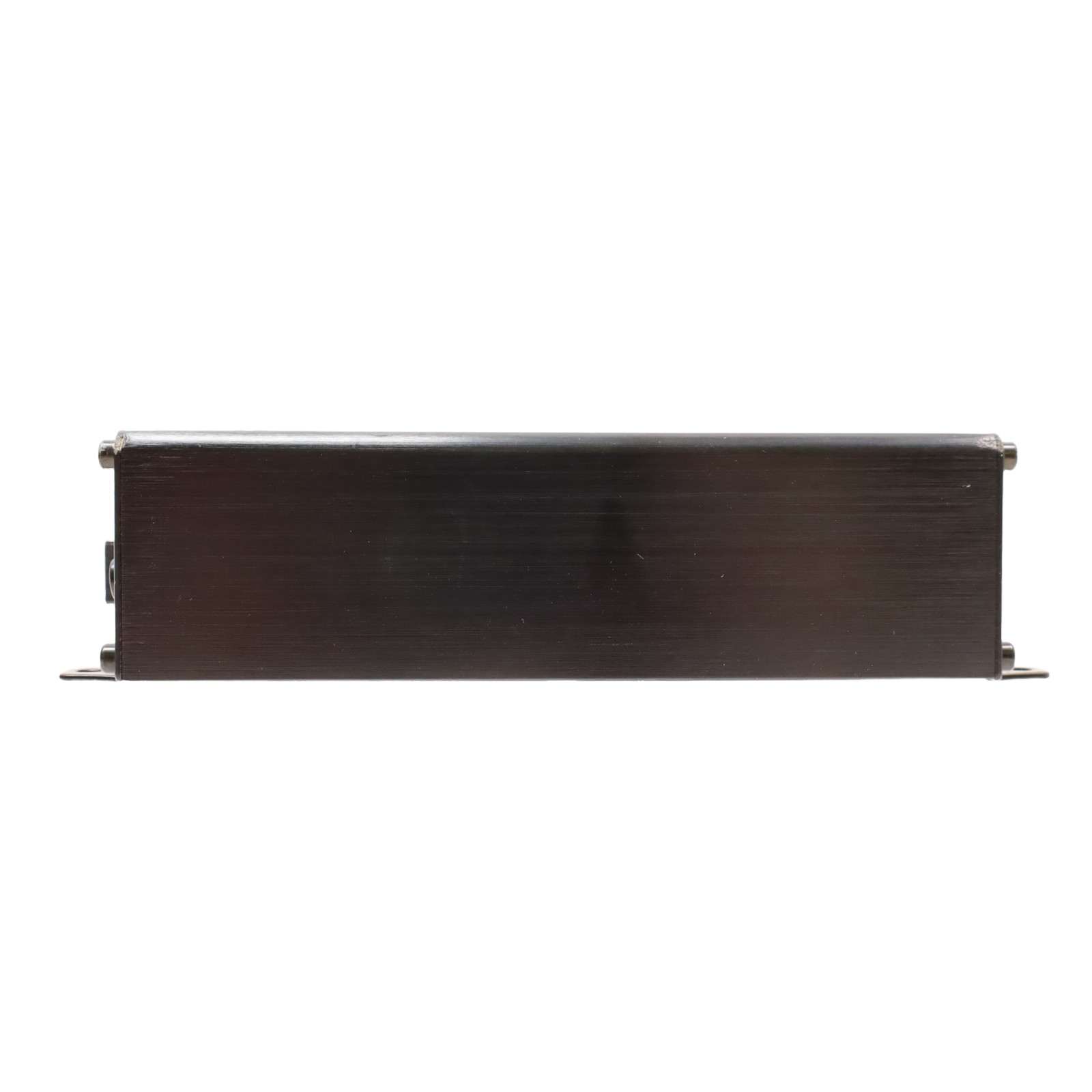

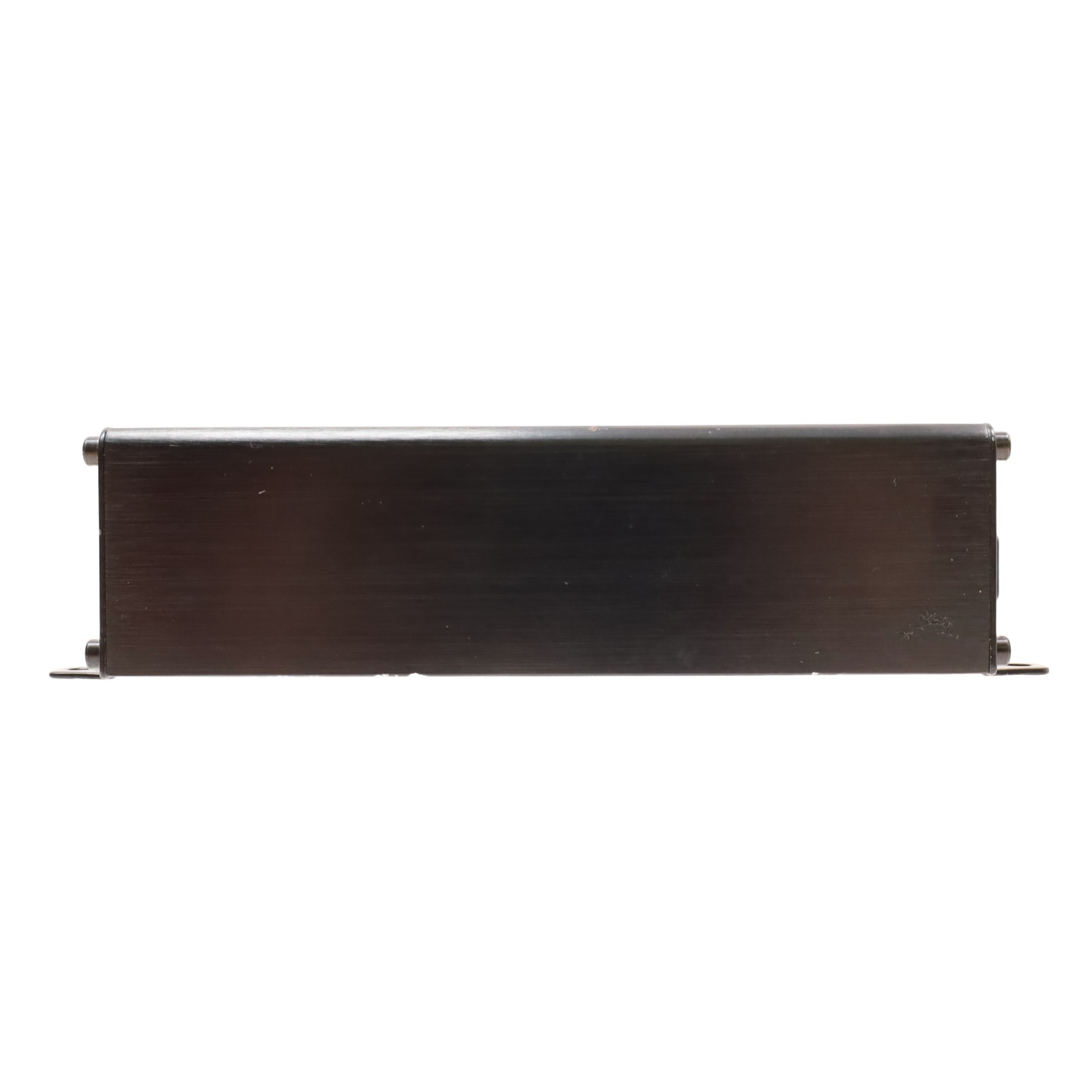

Kicker Smart Line Output Converter is previously owned. Shows signs of use with some scuffs and marks on the sides of the chassis. See photos for details.
return Policy
Orders are processed and shipped within one to two business days Monday through Friday 9:00 am – 5:00 PM. Your satisfaction is our primary goal! If for any reason you are not satisfied, we offer a 10 day money back guarantee from date of purchase for in-store pick-up orders and 15 day money back guarantee from date of purchase on shipped.
Product Location
Kicker KEYLOC 2-Channel Smart Line Output Converter
